SKU: 32212J2/QDFC290-SKF

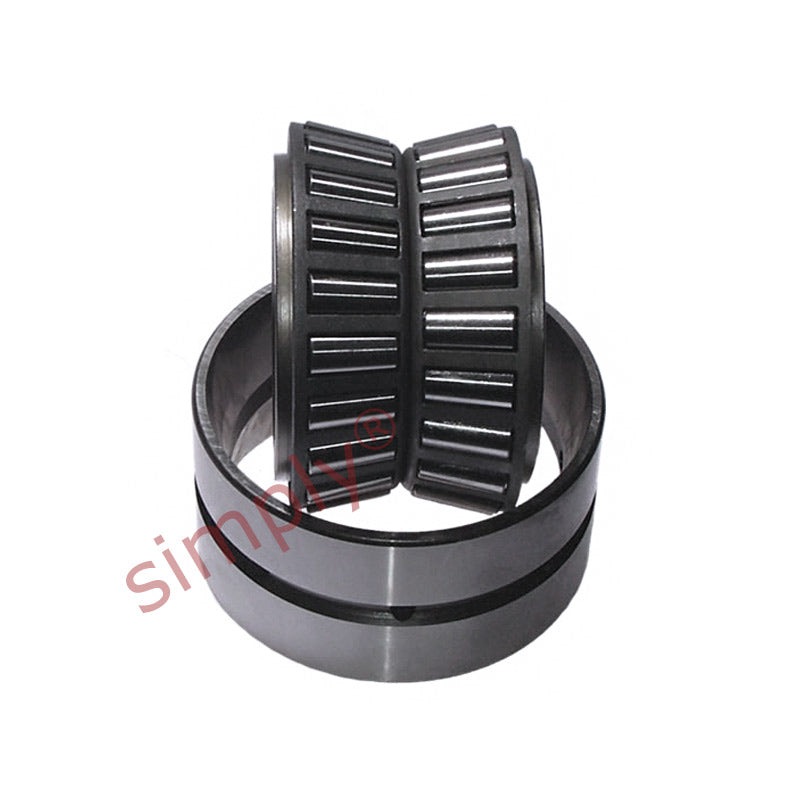

SKF 32212J2/QDFC290 Single Row Taper Roller Bearings Paired Face to Face 60x110x59.5mm
SKF 32212J2/QDFC290 Single Row Taper Roller Bearings Paired Face to Face 60x110x59.5mm
Out of stock
Share this product
Description
Description
|
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery. Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 59.5mm
- Seals / Shields:
- None
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| T | 59.5mm |
| Dynamic load | 216 kN |
| Static load | 320 kN |
| Fatigue load limit Pu | 37.5 kN |
| Reference speed | 3600 rpm |
| Limiting speed | 6000 rpm |
| Weight | 2.4 kg |
| 2B | 56mm |
| r3r4 | 1.5mm |
| r5 | 0.6mm |
| da max | 69mm |
| da min | 95mm |
| Da max | 103mm |
| Ca min | 4mm |
| ra max | 1.5mm |
| rc max | 0.6mm |
| Calculation Factor e | 0.4 |
| Calculation Factor Y1 | 1.7 |
| Calculation Factor Y2 | 2.5 |
| Calculation Factor Y0 | 1.6 |
