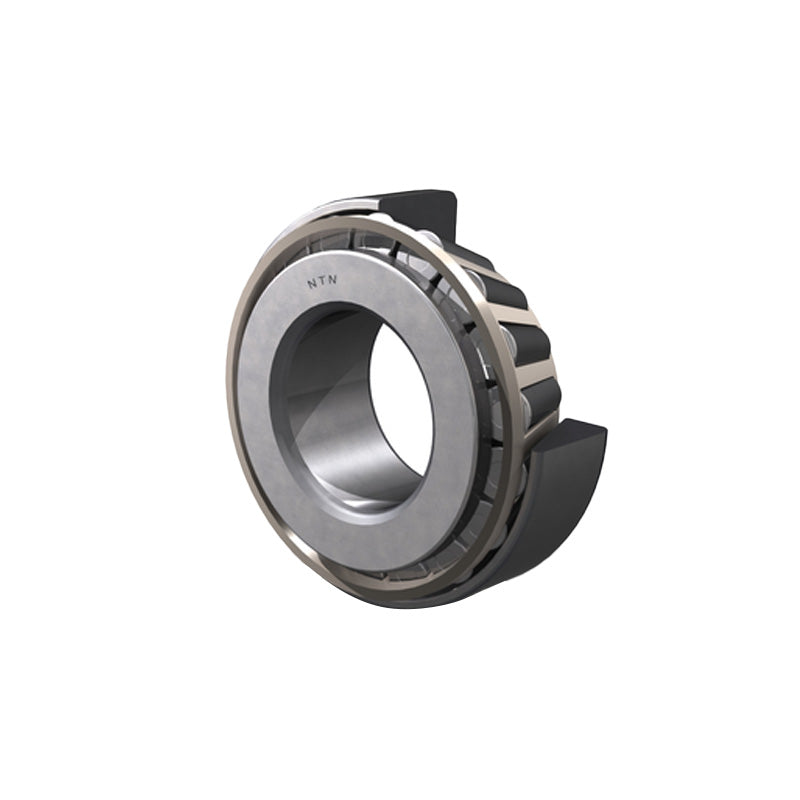

NTN 32040XUUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 200x310x70mm

NTN 32040XUUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 200x310x70mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 200mm
D 310mm
T 70mm
B 70mm
C 53mm
r<sub>s</sub> min 3mm
r<sub>ls</sub> min 2.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 1030kN
Static load C<sub>or</sub> 1470kN
Fatigue Load limit C<sub>u</sub> 135kN
Allowable Speed in grease 1100rpm
Allowable Speed in oil 1500rpm
--- Abutment dimensions
ISO Dimension series 4FD
d<sub>a</sub> min 214mm
d<sub>b</sub> max 218.5mm
D<sub>a</sub> max 298mm
D<sub>a</sub> min 269mm
D<sub>b</sub> min 298.5mm
S<sub>a</sub> min 11mm
S<sub>b</sub> min 17mm
r<sub>as</sub> max 2.5mm
r<sub>1as</sub> max 2mm
Load center a 66.5mm
Constant e 0.43mm
Y<sub>2</sub> 1.39mm
Y<sub>0</sub> 0.77mm
Weight 19.2kg
