SKU: 3203A-2ZTN9/C3MT33-SKF

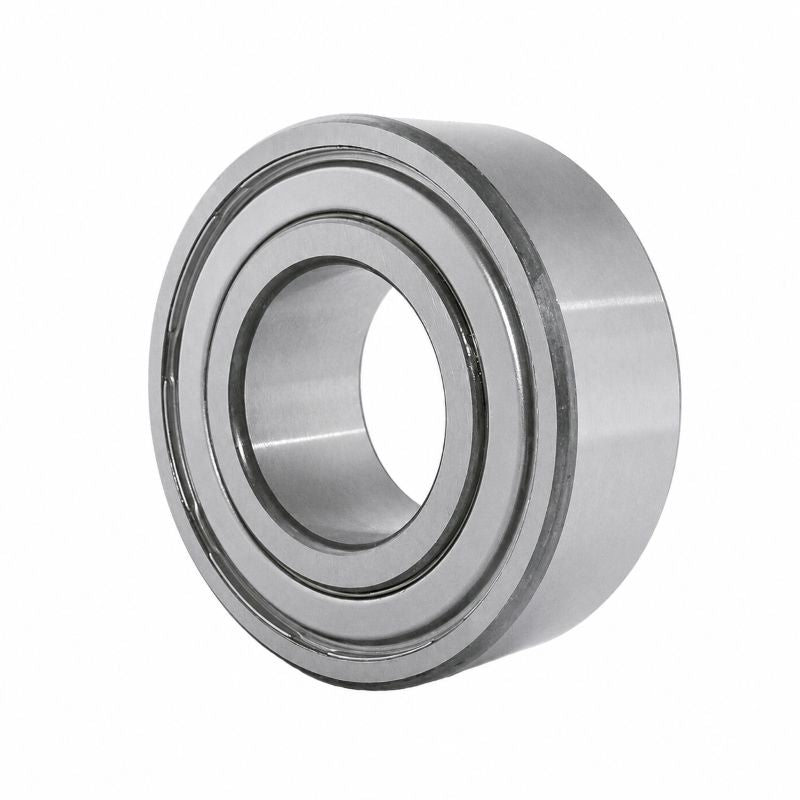

SKF 3203A2ZTN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 17x40x17.5mm

Name: SKF 3203A2ZTN9C3MT33 Double Row Angular Contact Ball Bearing with 2 Metal Shields 17x40x17.5mm
Brand: SKF
SKU: 3203A-2ZTN9/C3MT33-SKF
Availability: OutOfStock

Equivalent to: 5203

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Brand / Quality:: SKF - High Quality
Inside Diameter:: 17mm
Outside Diameter:: 40mm
Width:: 17.5mm
Seals / Shields:: None
Clearance:: C3

Technical

d	17mm
D	40mm
B	17.5mm
Dynamic load Cr	14.3 kN
Static load Cor	8.8 kN
Fatigue load limit Pu	0.365 kN
Max speed	16000 rpm
Weight	0.1 kg
d1	23.3mm
D1	35mm
r1r2 min	0.6mm
a	23mm
da min	21.4mm
da max	23mm
Da max	35.6mm
ra max	0.6mm
