SKU: 30228J2/DFC100-SKF

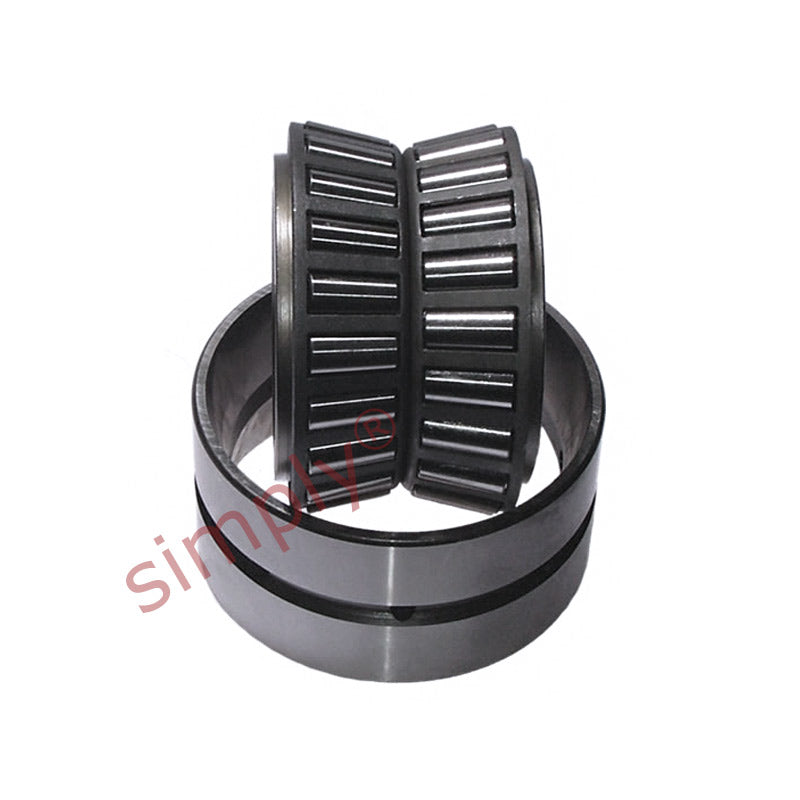

SKF 30228J2/DFC100 Single Row Taper Roller Bearings Paired Face to Face 140x250x91.5mm
SKF 30228J2/DFC100 Single Row Taper Roller Bearings Paired Face to Face 140x250x91.5mm
Out of stock
Share this product
Description
Description
|
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery. Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 250mm
- Width:
- 91.5mm
- Seals / Shields:
- None
Technical
Technical
| d | 140mm |
|---|---|
| D | 250mm |
| T | 91.5mm |
| Dynamic load | 721 kN |
| Static load | 1140 kN |
| Fatigue load limit Pu | 116 kN |
| Reference speed | 1500 rpm |
| Limiting speed | 2600 rpm |
| Weight | 18 kg |
| 2B | 84mm |
| r3r4 | 3mm |
| r5 | 1mm |
| da max | 164mm |
| da min | 219mm |
| Da max | 236mm |
| Ca min | 7mm |
| ra max | 2.5mm |
| rc max | 1mm |
| Calculation Factor e | 0.43 |
| Calculation Factor Y1 | 1.6 |
| Calculation Factor Y2 | 2.3 |
| Calculation Factor Y0 | 1.6 |
