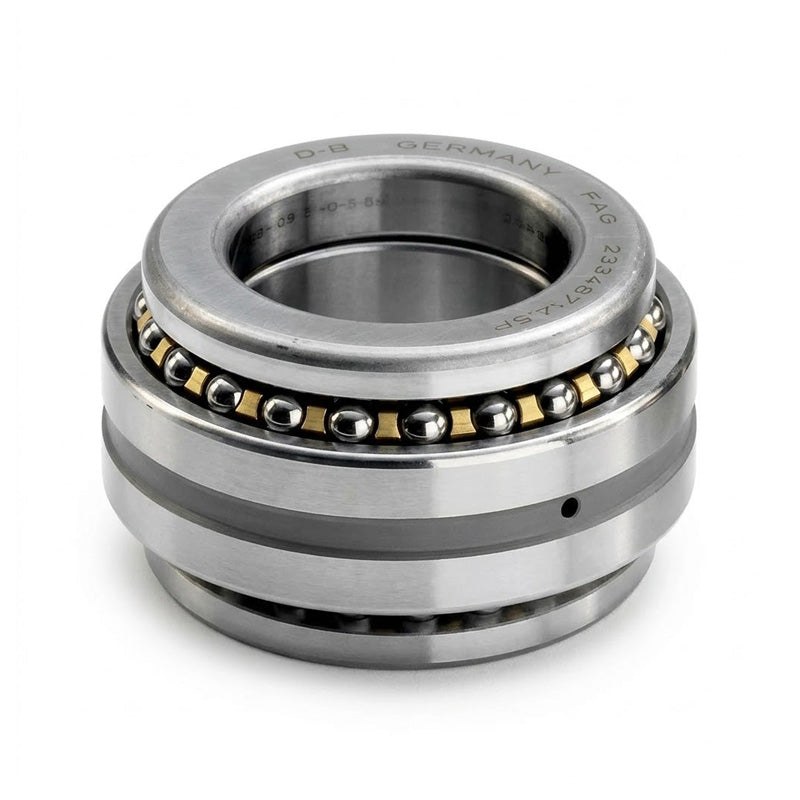

FAG 234421MSP Super Precision Double Axial Angular Contact Spindle Bearing 105x160x66mm

FAG Double Direction Axial Spindle Bearings: FAG Double Direction Axial Angular Contact Thrust Ball Bearings were developed for the machine tool industry and are manufactured exclusively as high precision bearings. They accommodate axial loads in the main spindles of machine tools. They are matched to the abutment dimensions of the Double Row Cylindrical Roller Bearings of the NN30 series which take up the radial forces.
The bearings have a contact angle of 60 degrees and are axially preloaded. this results in a very high axial load carrying capacity and rigidity.
Benefits: High axial load control, extreme rigidity.

Brand / Quality:

FAG - High Quality

Inside Diameter:

105mm

Outside Diameter:

160mm

Width:

66mm

Seals / Shields:

None

Style:

Precision Angular Contact Spindle Bearings

Contact Angle:

60 Degree contact angle
