SKU: 23096-K-MB-FAG

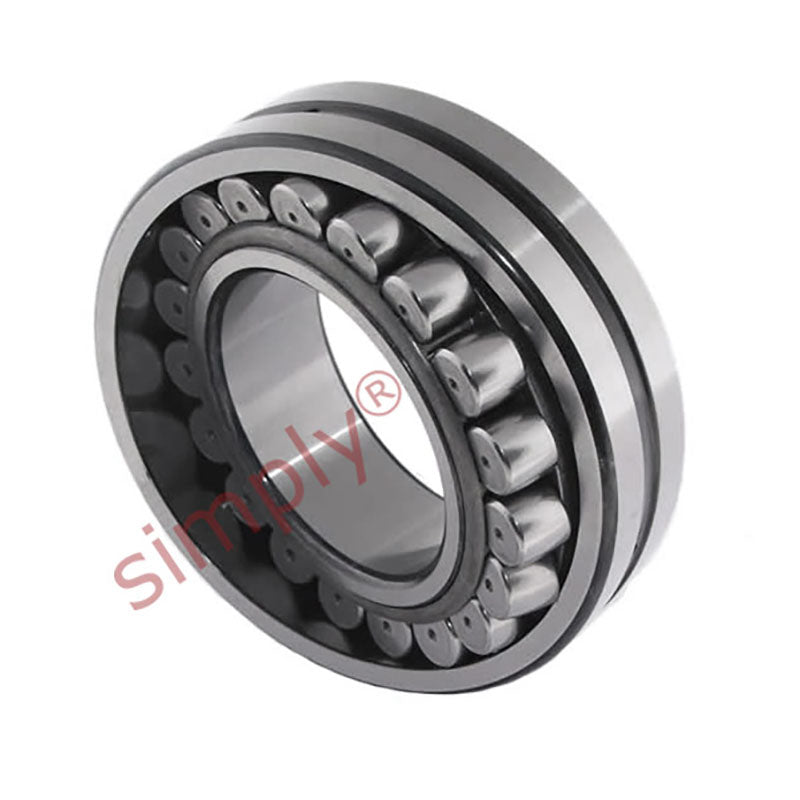

FAG 23096KMB Spherical Roller Bearing with Taper Bore 480x700x165mm
FAG 23096KMB Spherical Roller Bearing with Taper Bore 480x700x165mm
Equivalent to: 23096K
Out of stock
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 480mm
- Outside Diameter:
- 700mm
- Width:
- 165mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 480mm |
| D | 700mm |
| B | 165mm |
| r | 6mm |
| D1 | 632.6mm |
| ds | 12.5mm |
| ns | 23.5mm |
| da | 503mm |
| Da | 677mm |
| ra | 5mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 455000 N |
| Limiting speed | 670 rpm |
| Reference speed | 550 rpm |
| Dynamic Load Rating | 3800000 N |
| Static Load Rating | 8150000 N |
| Mass | 208kg |
| --- | Factors |
| e | 0.23 |
| Y1 | 2.9 |
| Y2 | 4.31 |
| Y0 | 2.83 |
| --- | Matching Adaptor Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=OH3096H+sleeve>OH3096H</a> |
| --- | Matching Withdrawal Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AOHX3096G+sleeve>AOHX3096G</a> |
