SKU: 22322-E1-K-T41A-C3+H2322-FAG

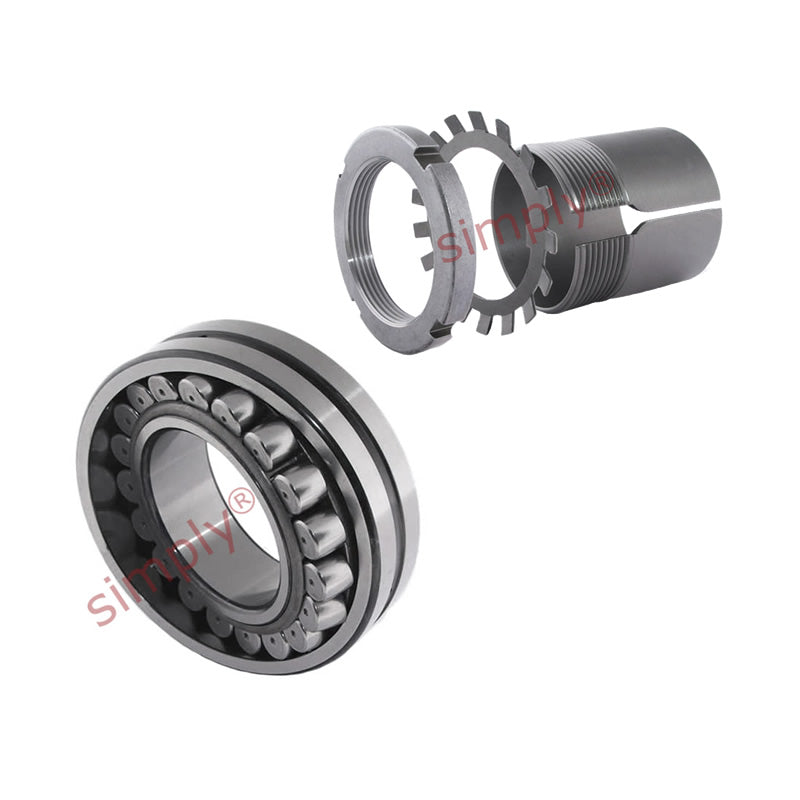

FAG 22322E1KT41AC3 X-life Spherical Roller Bearing with H2322 Adapter Sleeve 100x240x80mm
FAG 22322E1KT41AC3 X-life Spherical Roller Bearing with H2322 Adapter Sleeve 100x240x80mm
Out of stock
Description
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 240mm
- Width:
- 80mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d1H | 100mm |
|---|---|
| d | 110mm |
| D | 240mm |
| B | 80mm |
| r min | 3mm |
| D1 | 204.9mm |
| d2 | 143.1mm |
| ds | 8mm |
| ns | 15mm |
| Dm | 154mm |
| l | 105mm |
| c | 21mm |
| da max | 135mm |
| Da max | 226mm |
| db min | 121mm |
| Ba min | 7mm |
| ra max | 2.5mm |
| Dynamic load Cr | 950000 N |
| Static load C0r | 1070000 N |
| e | 0.33 |
| Y1 | 2.07 |
| Y2 | 3.09 |
| Y0 | 2.03 |
| Fatigue load limit Cur | 91000 N |
| Limiting speed nG | 2600 rpm |
| Reference speed nB | 2130 rpm |
| Bearing weight | 17.4 kg |
| Adapter sleeve weight | 2.74 kg |
