SKU: 18690/18620DC/X1S18690-TIM

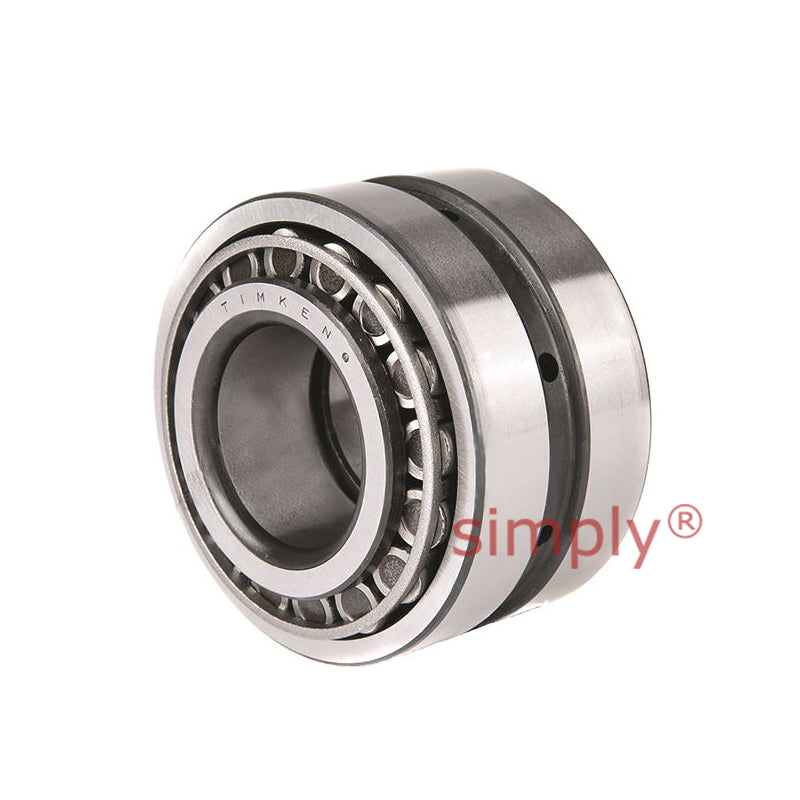

Timken 18690/18620DC/X1S18690 TDO Double Outer Race Taper Roller Bearing 1.8125x3.125x1.6249x1.3125 inch
Timken 18690/18620DC/X1S18690 TDO Double Outer Race Taper Roller Bearing 1.8125x3.125x1.6249x1.3125 inch
Out of stock
Description
Description

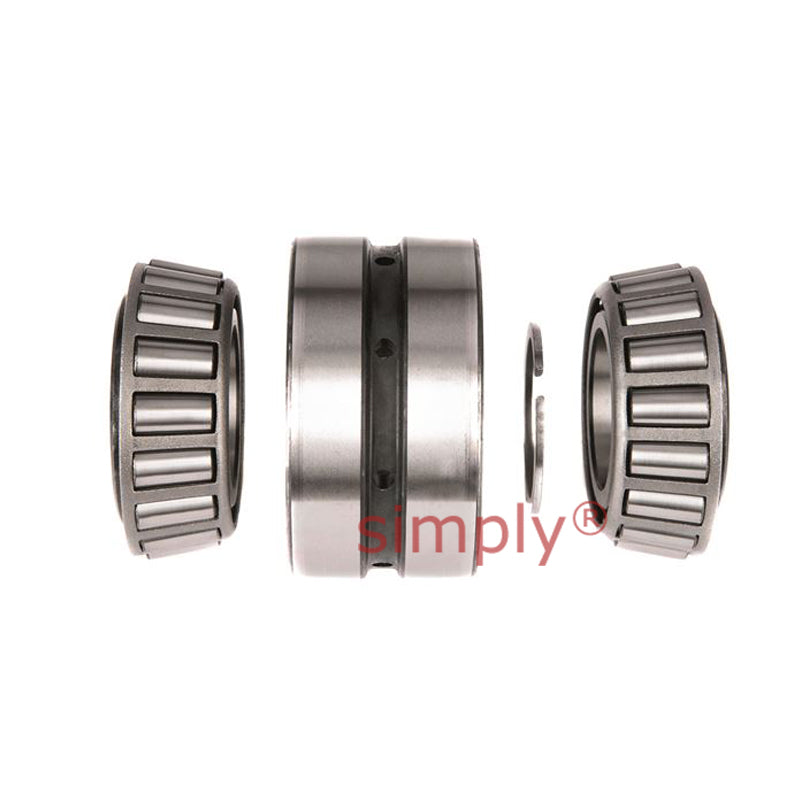

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 46.04mm = 1.8125 inch
- Outside Diameter:
- 79.38mm = 3.125 inch
- Width:
- 41.27mm = 1.6249 inch
Technical
Technical
| d | 46.038mm = 1.8125 inch |
|---|---|
| D | 79.375mm = 3.125 inch |
| T | 41.272mm = 1.6249 inch |
| C | 33.338mm = 1.3125 inch |
| Dynamic (1) C1 | 83800N |
| Factors (5) e | 0.37 |
| Factors (5) Y1 | 1.8 |
| Factors (5) Y2 | 2.69 |
| Dynamic (2) C90 | 12500N |
| Dynamic (2) Ca90 | 7990N |
| Dynamic (2) C90(2) | 21700N |
| Factors (5) K | 1.56 |
| Shaft max shaft fillet radius R(3) | 2.8mm = 0.11 inch |
| Shaft backing shoulder diameter db | 56mm = 2.2 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 74mm = 2.91 inch |
| Pin Ka | 4.6mm = 0.18 inch |
| Pin Kb | 2.3mm = 0.09 inch |
| G1 | 23.9 |
| G2 | 17.7 |
| Cg | 0.0725 |
