SKU: 180101X/180180X-GAMET

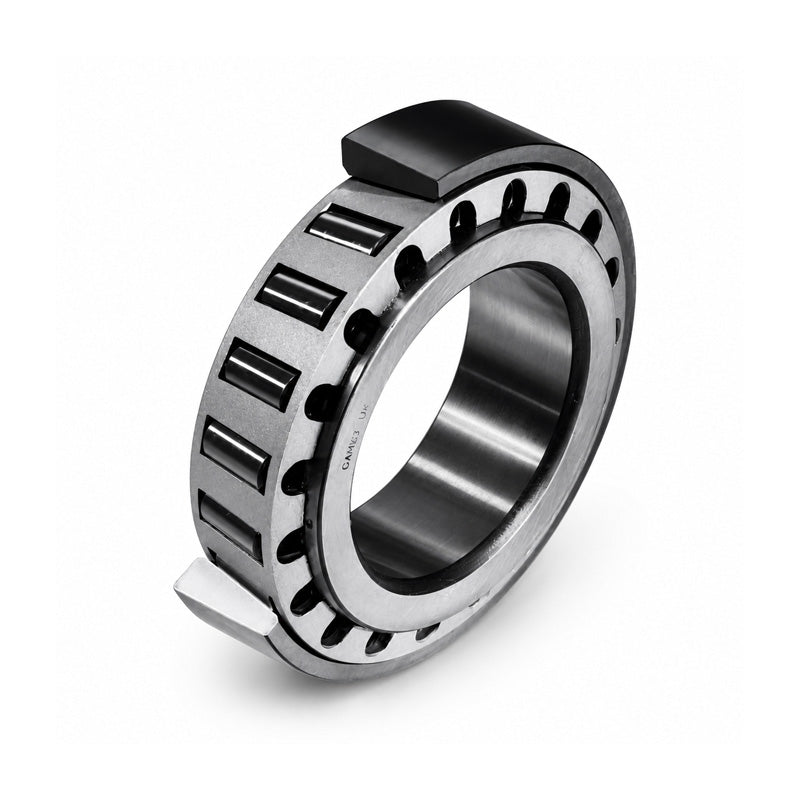

Gamet 180101X/180180X Super Precision Tapered Roller Bearing Plain Cup Type 101.6x180.975x46mm - Allow 7-10 Days
Gamet 180101X/180180X Super Precision Tapered Roller Bearing Plain Cup Type 101.6x180.975x46mm - Allow 7-10 Days
Out of stock
Description
Description
|
Super Precision Tapered Roller Bearing Plain Cup Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Made from high quality bearing materials, the basic single row bearing can be used in light to medium loaded applications, and provides a simple, cost-effective arrangement. Cone Bore Run-out tolerances range from 0.5 microns to 1.5 microns. Quality assured to BS EN ISO 9001:2000 standards. Benefits: Cost-effective, high quality bearing materials, quality assured. |
- Brand / Quality:
- Gamet - High Quality
- Inside Diameter:
- 101.6mm
- Outside Diameter:
- 180.975mm
- Width:
- 46mm
Technical
Technical
| d | 101.600mm |
|---|---|
| D | 180.975mm |
| T | 47.62mm |
| C | 39.62mm |
| B | 46.00mm |
| F | 8.00mm |
| da | 125mm |
| Da | 160mm |
| r | 3.00mm |
| R | 2.50mm |
| Radial static stiffness | 127 daN/µ |
| Axial static stiffness | 19 daN/µ |
| Radial basic rating 10,000hrs@500rpm | 4645 daN |
| Axial basic rating 10,000hrs@500rpm | 2240 daN |
| Max speed | 3900 rpm |
| Weight | 4.550kg |
| Cone | 180101X |
| Cup | 180180X |
