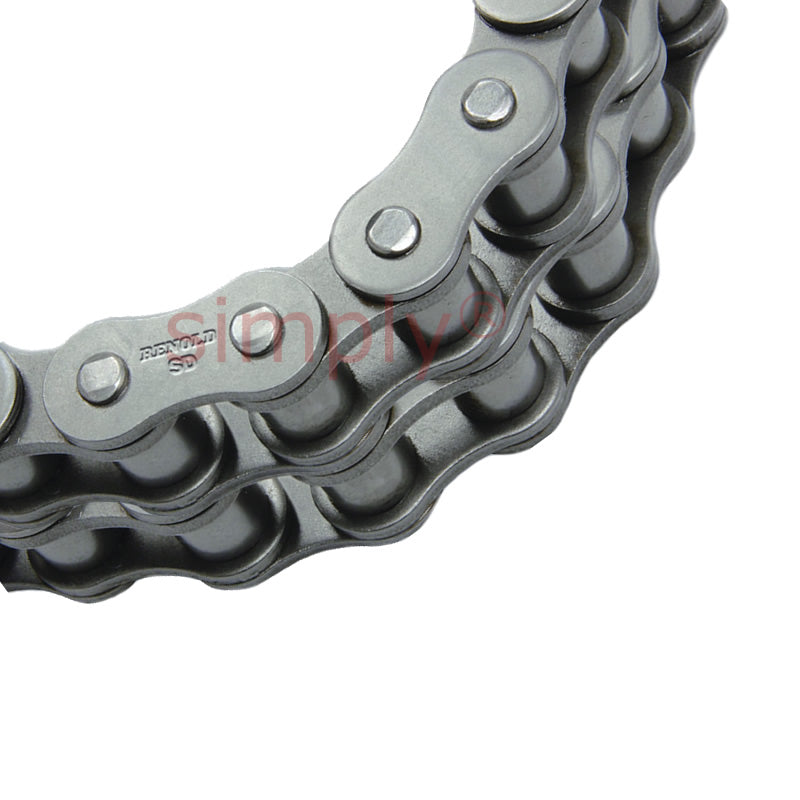

Renold SYNO 16B-3 BS Triplex Roller Chain 1 inch Pitch
Renold SYNO 16B-3 BS Triplex Roller Chain 1 inch Pitch
Equivalent to: SNX16B-3
Out of stock
Share this product
Description
Description
Renold SYNO Maintenace-free Corrosion-resistant Triplex Chain: Renold Syno Nickel Plated chain is ideal for situations where lubricant is to be avoided. Particularly in hygiene-sensitive applications. With a food industry-approved lubricant contained within its sintered bush, this chain needs no relubricating in practically every environment. The roller coating, unique to Renold, is especially suited to the food industry.
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 3.76mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H2) | 98.6mm |
| Connecting link extension max (J) | 2.2mm |
| Transverse Pitch nom (K) | 31.88mm |
| ISO606 Tensile strength min | 160000 N |
| Weight | 8.15 kg/m |
