SKU: 1155-2K-RHP

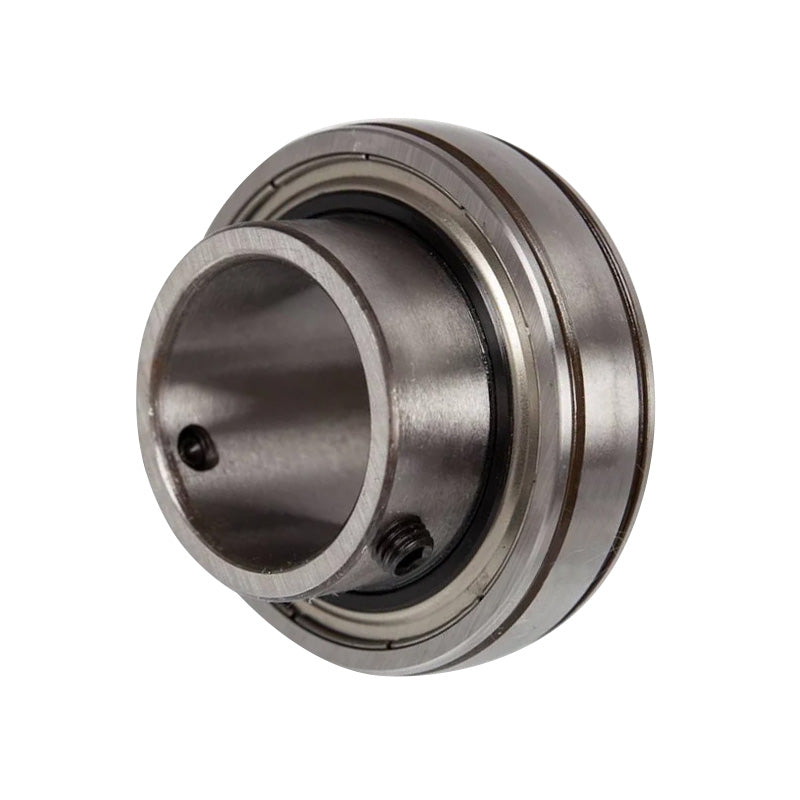

RHP 1155-2K Parallel Outer Taper Bore Bearing Insert and H311-2 Sleeve with 2 inch Shaft 100mm Outside Diameter

RHP 1155-2K Parallel Outer Taper Bore Bearing Insert and H311-2 Sleeve with 2 inch Shaft 100mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2 inch
D 3.937mm
C 0.827mm
B4 0.984mm
B5 1.772mm
B6 0.472mm
d 2.1654mm
d1 2.709mm
d4 2.953mm
r 0.059mm
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 0.95 kg
Supplied sleeve H311-2
