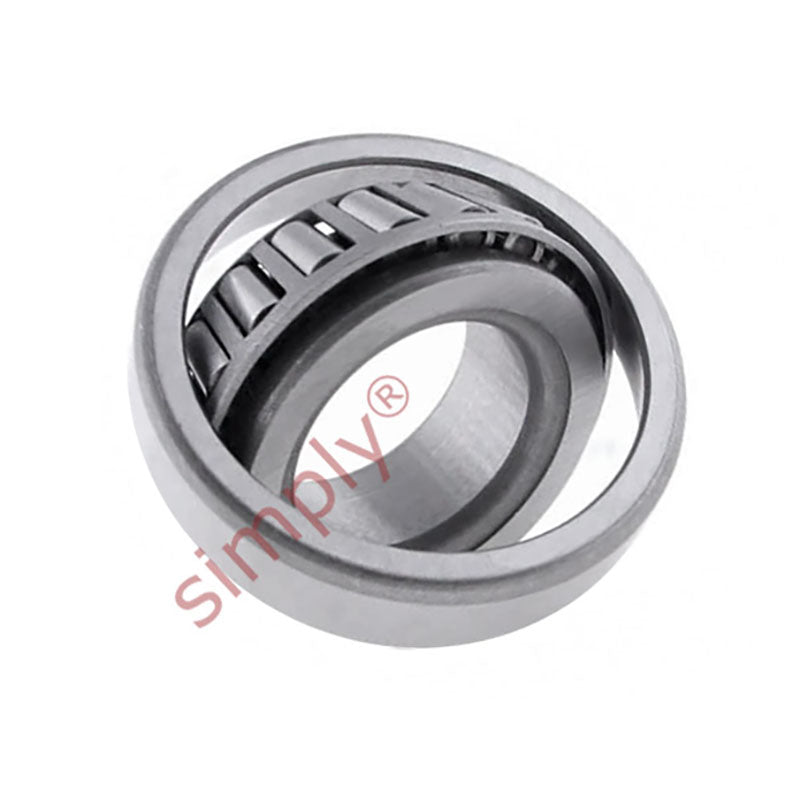

SKF 07100S/07210X/Q Imperial Taper Roller Bearing 1x2x0.591 inches

Name: SKF 07100S/07210X/Q Imperial Taper Roller Bearing 1x2x0.591 inches
Brand: SKF
SKU: 07100S/07210X/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 25.4mm = 1 inch
Outside Diameter:: 50.8mm = 2 inch
Width:: 15.01mm = 0.591 inch
Seals / Shields:: None

Technical

d	25.4mm
D	50.8mm
T	15.011mm
Dynamic load	28.1 kN
Static load	30.5 kN
Fatigue load limit Pu	3.15 kN
Reference speed	10000 rpm
Limiting speed	15000 rpm
Weight	0.13 kg
d1	37.3mm
B	14.26mm
C	12.7mm
r1r2 min	1.5mm
r3r4 min	1.5mm
a	12mm
da max	31mm
db min	32.5mm
Da min	41mm
Da max	43.5mm
Db min	48mm
Ca min	2mm
Cb min	2mm
ra max	1.5mm
rb max	1.5mm
Calculation factor e	0.4
Calculation factor Y	1.5
Calculation factor Y0	0.8
