SKU: 06-B-36-01-ROLL-REN

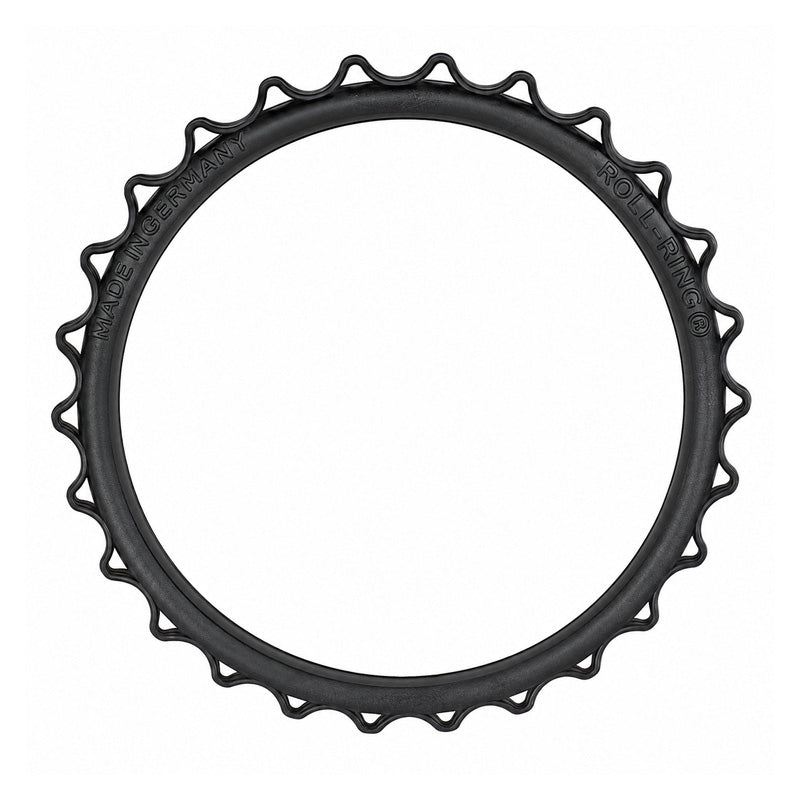

Renold 36 Tooth 06-B Roll Ring for 3/8 inch Pitch - Ambient Temperature -20 to+70°C
Renold 36 Tooth 06-B Roll Ring for 3/8 inch Pitch - Ambient Temperature -20 to+70°C
Out of stock
Description
Description
|
Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to the maximum permissible chain speed, wear period, chemical resistance and cold flexibility. They are therefore ideal for a wide spectrum of mechanical engineering. |
- Brand / Quality:
- Renold - High Quality
- Teeth:
- 36
- Pitch:
- 3/8 inches
Technical
Technical

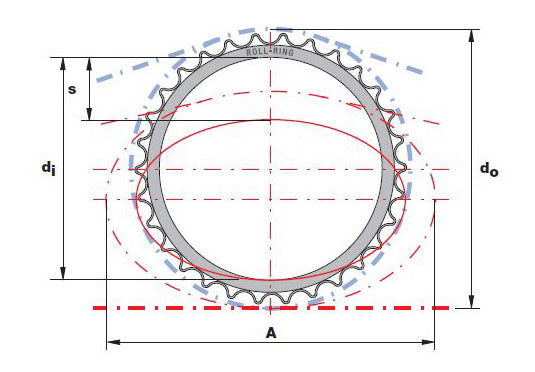

| do | 109mm |
|---|---|
| di | 89mm |
| s | 25mm |
| A | 143mm |
| D = do-s | 84mm |
| Chain Dimension - p x b1- inches | 3/8x7/32 |
| Max Static Expansive Force - N** | 28.5 |
| Maximum Chain Speed m/s | 5.2 |
| Ambient Temperature (°C) | -20 to+70 |
| Weight (kg) | 0.017 |
