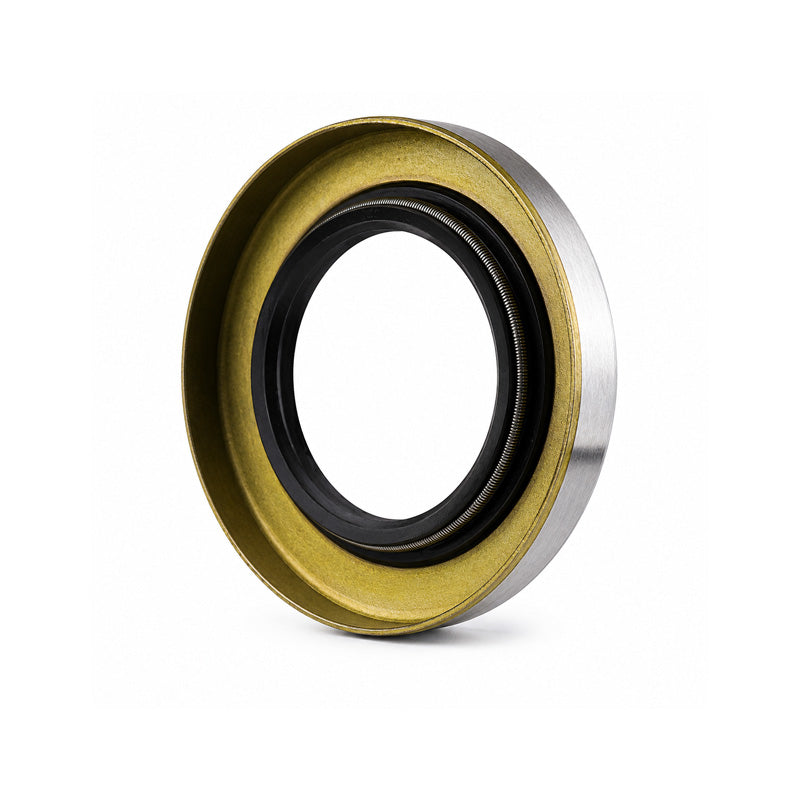

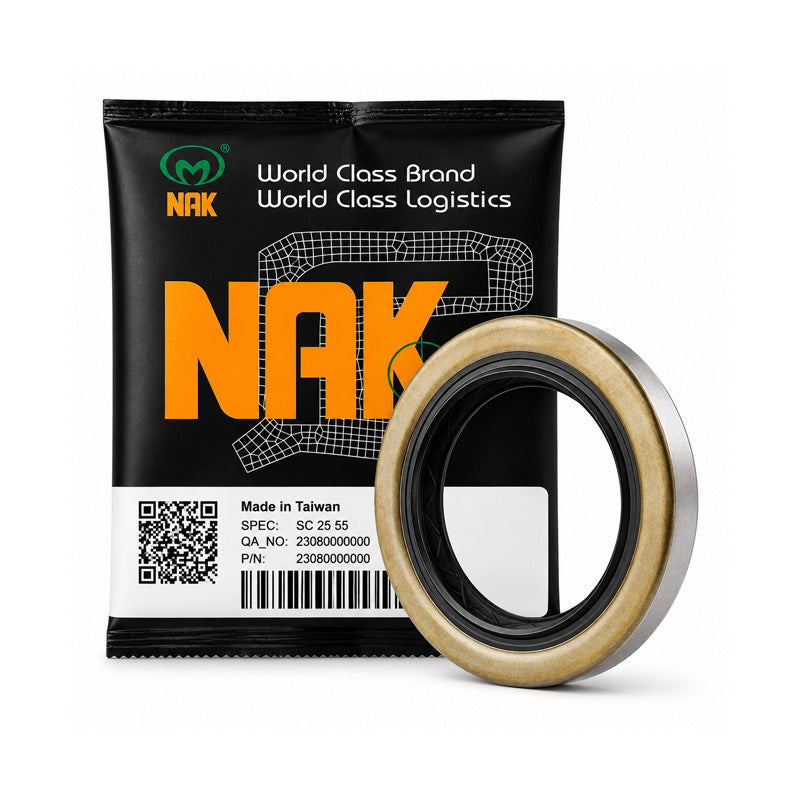

NAK 0.641x0.971x0.188/0.203 inch Metal Cased Lead-in Chamfer FKM Rubber Single Lip Rotary Shaft Oil Seal VM - Allow 7-10 Days

NAK VM FKM Oil Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. VM type seals are often used in larger shaft sizes or when a smaller shaft requires extra strength. This is due to the metal-cased outside diameter which has a very stable construction and offers a better-protected sealing member in comparison to the open-backed style. The VM type oil seals feature a lead-in chamfer and have an additional inner rubber lining particularly fit for protecting the case from erosive fluid. The VM features a single-sealing FKM rubber lip on the inside diameter.
Benefits: High-temperature range, Chemical resistance, Higher wear resistance, Lower drag coefficient.

Brand / Quality:

NAK - High Quality

Inside Diameter:

16.27mm = 0.641 (41/64) inch

Outside Diameter:

24.66mm = 0.971 inch

Width:

4.78mm = 0.188 inch

Seals / Shields:

FKM

Style:

VM

Colour:

Brown
