SKU: XPA.1360.CVBELT.MB
XPA1360 Major Brand XPA-Section Cogged V-Belt
- Regular price
- €16,38 ex VAT
- Sale price
- €16,38
- Regular price
-
Quantity Price Breaks
XPA1360 Major Brand XPA-Section Cogged V-Belt
- Regular price
- €16,38 ex VAT
- Sale price
- €16,38
- Regular price
-
Description

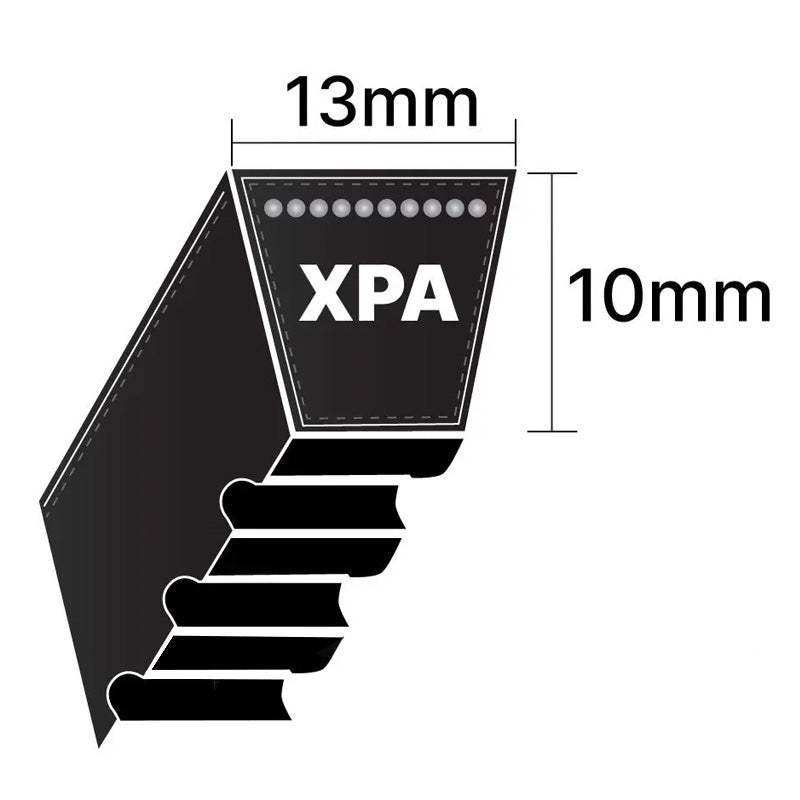

XPA Section Cogged Type V Belts: Major Brand longer life cogged 13x10mm (1/2x3/8 inch) belts, cogged belts offer increased air flow which can lead to cooler running. As cogged belts aren't wrapped the cross sectional area that would normally be occupied by the cover is used for greater load carrying cord. Cogged belts tend to be more flexible and can be operated with smaller sheaves.
Benefits: Universal classical profile to fit ISO 4183/4184 pulleys, Low stretch polyester tensile member, Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.
Technical
| Inside Length | = | 1321mm |
| Outside Length | = | 1378mm |
| Datum Length | = | 1360mm |
