SKU: WSZC70-JCS

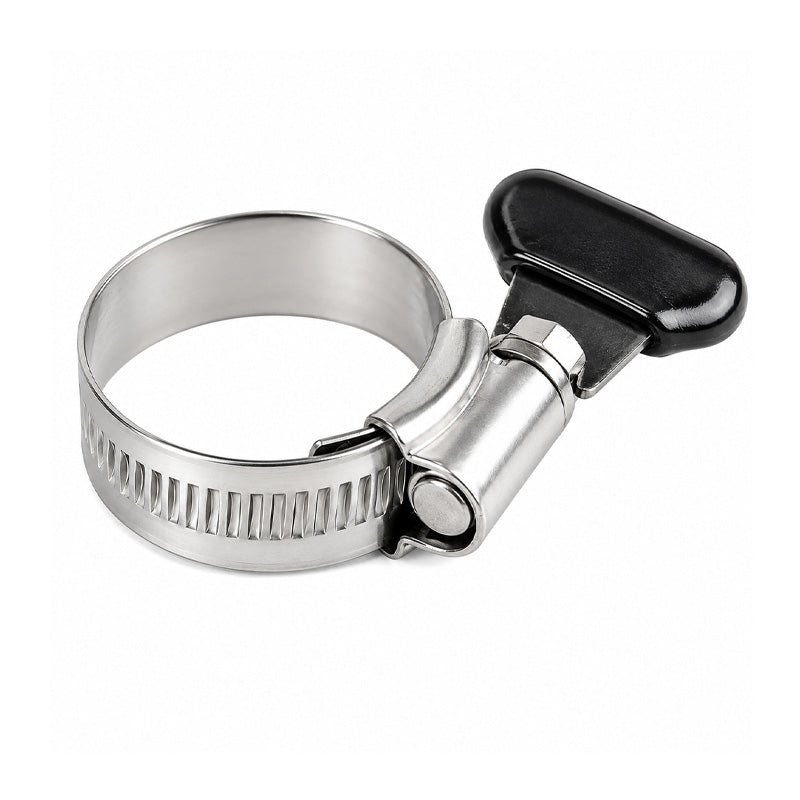

JCS WSZC70 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 50-70mm Band Width 13mm
- Regular price
- €5,97 ex VAT
- Sale price
- €5,97
- Regular price
-
In stock
Quantity Price Breaks
3
€5,31
5
€5,01
9
€4,96
19
€4,90
49
€4,84
74
€4,78
99
€4,48
199
€4,42
249
€4,36
499
€4,30
999
€4,18
SKU:
WSZC70-JCS
JCS WSZC70 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 50-70mm Band Width 13mm
- Regular price
- €5,97 ex VAT
- Sale price
- €5,97
- Regular price
-
Description
Zinc Plated Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from mild steel, electroplated, passivated and tested to EN9227. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse.
Technical
| BS No. | = | 70 |
| Adjustment Range (mm) | = | 50-70mm |
| Adjustment Range (inch) | = | 2 - 2-3/4 inch |
| A | = | 13mm |
| B | = | 37mm |
| C | = | 12mm |
| D | = | 16mm |
| E | = | 13mm |
| F | = | 0.9mm |
| G | = | 24mm |
| Recommended Torque Nm | = | 6Nm |
| Recommended Torque lb-in | = | 54lb-in |
