SKU: WSZC45-JCS
JCS WSZC45 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 35-45mm Band Width 13mm
- Regular price
- €5,51 ex VAT
- Sale price
- €5,51
- Regular price
-
In stock
Quantity Price Breaks
3
€4,90
5
€4,63
9
€4,57
19
€4,52
49
€4,46
74
€4,41
99
€4,13
199
€4,08
249
€4,02
499
€3,97
999
€3,86
SKU:
WSZC45-JCS
JCS WSZC45 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 35-45mm Band Width 13mm
- Regular price
- €5,51 ex VAT
- Sale price
- €5,51
- Regular price
-
Description
Zinc Plated Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from mild steel, electroplated, passivated and tested to EN9227. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse.
Technical

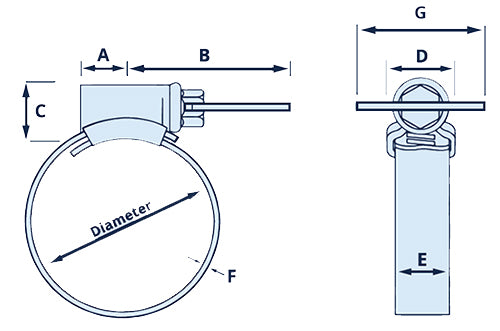

| BS No. | = | 45 |
| Adjustment Range (mm) | = | 35-45mm |
| Adjustment Range (inch) | = | 1-3/8 - 1-3/4 inch |
| A | = | 13mm |
| B | = | 32mm |
| C | = | 12mm |
| D | = | 15mm |
| E | = | 13mm |
| F | = | 0.9mm |
| G | = | 24mm |
| Recommended Torque Nm | = | 5Nm |
| Recommended Torque lb-in | = | 45lb-in |
