SKU: WMX.909580

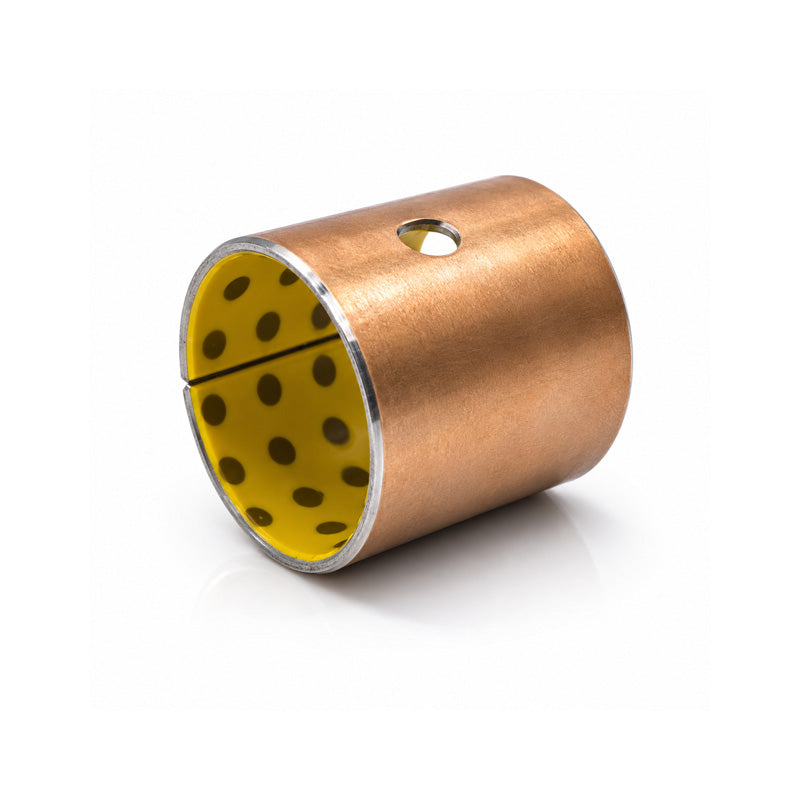

WMX909580 Metric Wrapped Acetal Lined Plain Bush 90x95x80mm
WMX909580 Metric Wrapped Acetal Lined Plain Bush 90x95x80mm
Regular price
€31,12
ex VAT
Regular price
Sale price
€31,12
ex VAT
In stock
Price Break
10+
€26,28
20+
€25,22
50+
€24,69
100+
€23,90
500+
€23,36
1000+
€22,04
Quantity
Couldn't load pickup availability
Description
Description
Wrapped Acetal Lined Plain Bushes: These bushes are high-performance, self-lubricating bearings designed for applications requiring low friction and maintenance-free operation. The WMX range is ideal for the automotive, machine building and agricultural industries, as well as any application where lubricant cannot be supplied continuously.
Benefits: Low friction, wear resistant, high load capacity
- Brand / Quality:
- Simply Plastic Bushes - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 95mm
- Length:
- 80mm
Technical
Technical
| Inside Diameter (d) | 90mm |
|---|---|
| Outside Diameter (D) | 95mm |
| Length (B) | 80mm |
| Overall Length Tolerance | 79.75mm min to 80.25mm max |
| Recommended Housing Size Tolerance | 95mm min to 95.035mm max H7 |
| Shaft Diameter Tolerance | 89.946mm min to 90mm max |
| Inside Diameter when Fitted Tolerance | 90.1mm min to 90.267mm max |
| Inside Chamfers Tolerance | 0.2mm min to 1mm max |
| Outside Chamfers Tolerance | 1.2mm min to 2.4mm max |
| Max PV | 2.8 N/mm squared x m/s |
| Max Static Load | 70 N/mm squared |
| Max Dynamic Load | 70 N/mm squared |
| Max Sliding Speed -With Grease | 2.5 m/s |
| Operating Temperature | -40 to 110 Deg C |
| Thermal Conductivity | 2 W/mk |
| Coefficient of Friction - With Grease | 0.05 to 0.15 |
| Recommended Shaft Hardness | 200 min HB |
