SKU: W6303-2RS1-EU

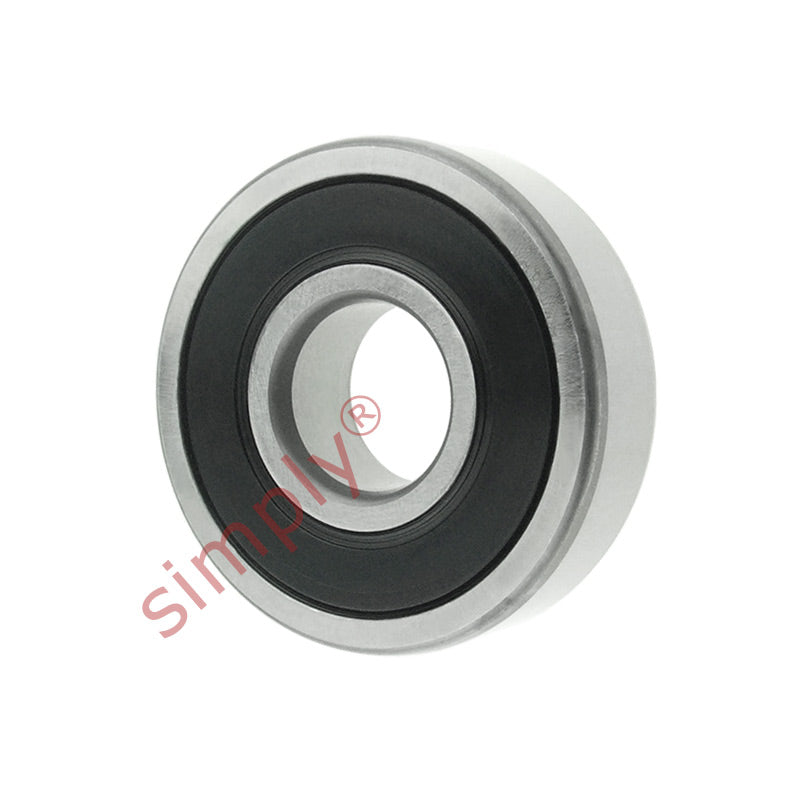

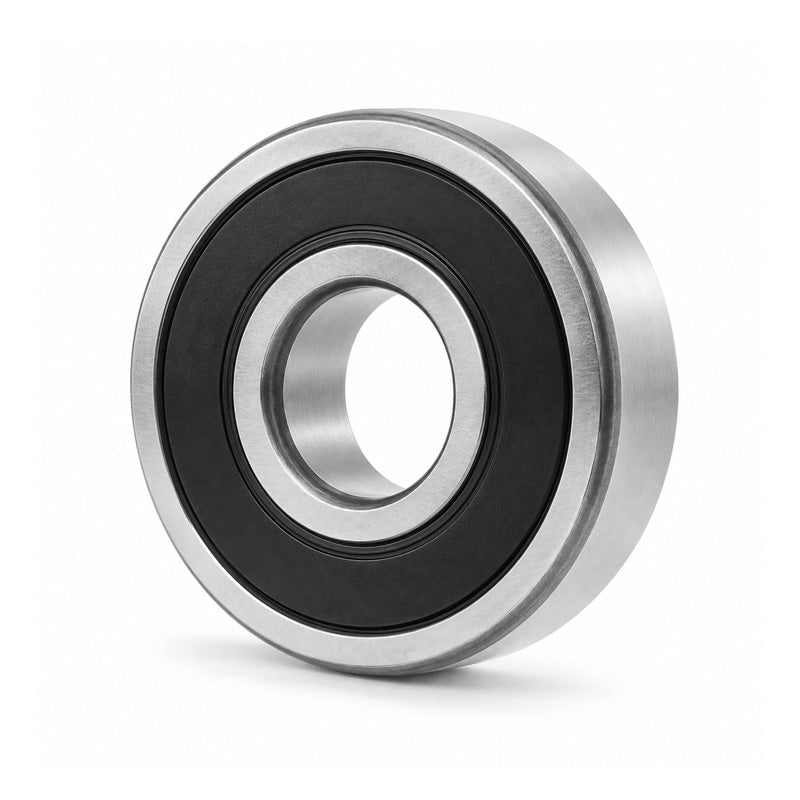

W63032RSR Quality Budget Stainless Steel Rubber Sealed Deep Groove Ball Bearing 17x47x14mm
Equivalent to: W63032RSH W63032RS1
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Stainless Steel Deep Groove Ball Bearings: Designed to resist corrosion, they are ideally suited for application in the food industry and anywhere that requires a bearing which is both hygienic and has high resilience to water. These single-row deep groove ball bearings have the same deep raceway grooves and the close conformity between raceways and balls as standard deep groove ball bearings. They can carry axial loads acting in both directions in addition to radial loads, even at high speeds. Stainless steel deep groove ball bearings have the same running properties as conventional steel deep groove ball bearings, but have a lower load-carrying capacity. The bearings are available in open and sealed designs for shaft diameters from 1 to 50 mm. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 14mm |
| C | 14.3 kN |
| Co | 6.55 kN |
| Pu | 0.275 kN |
| Reference speed | 34000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.12 kg |
| D1 | 24mm |
| D2 | 39.7mm |
| r1r2 min | 1mm |
| da min | 22.6mm |
| da max | 23.5mm |
| Da max | 41.4mm |
| ra max | 1mm |
| kr | 0.03 |
| fo | 12 |
