SKU: W61802-2RS1-EU

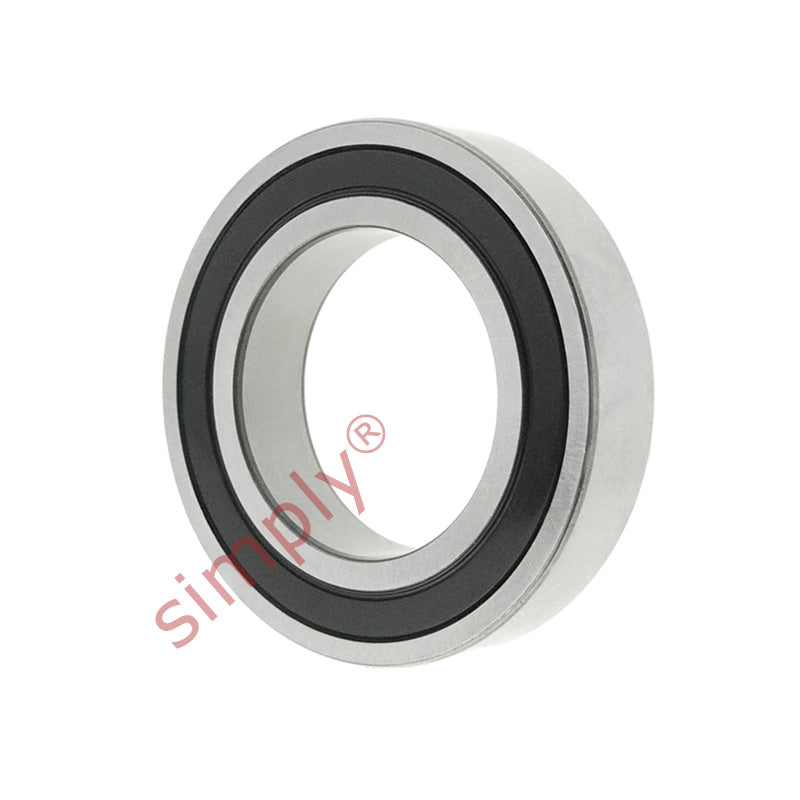

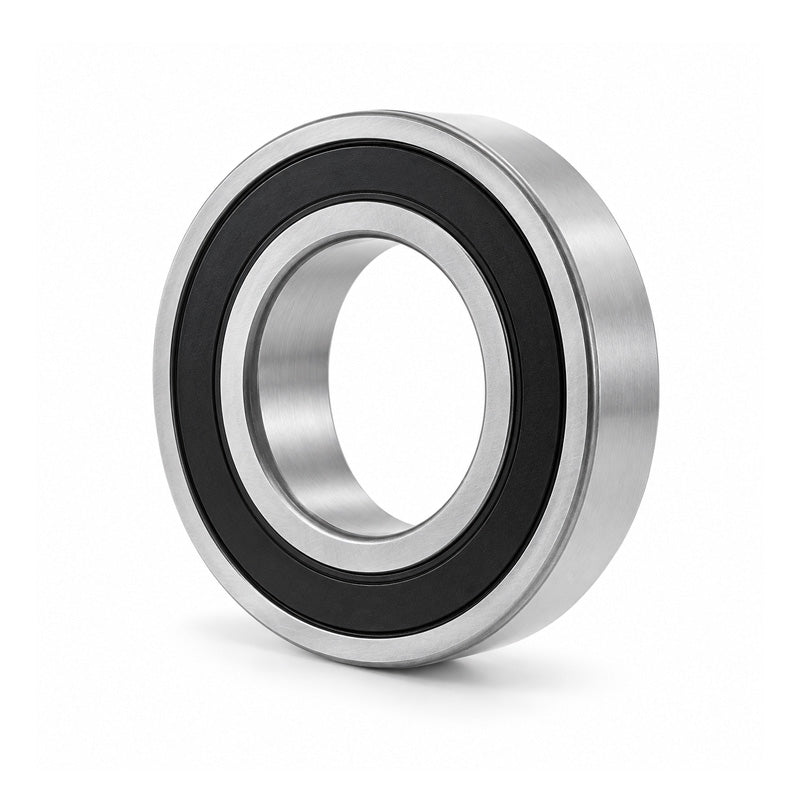

W618022RS Quality Budget Stainless Steel Rubber Sealed Thin Section Deep Groove Ball Bearing 15x24x5mm
Equivalent to: W618022RS W618022RS1 W68022RS
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Stainless Steel Deep Groove Ball Bearings: Designed to resist corrosion, they are ideally suited for application in the food industry and anywhere that requires a bearing which is both hygienic and has high resilience to water. These single-row deep groove ball bearings have the same deep raceway grooves and the close conformity between raceways and balls as standard deep groove ball bearings. They can carry axial loads acting in both directions in addition to radial loads, even at high speeds. Stainless steel deep groove ball bearings have the same running properties as conventional steel deep groove ball bearings, but have a lower load-carrying capacity. The bearings are available in open and sealed designs for shaft diameters from 1 to 50 mm. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 15mm |
|---|---|
| D | 24mm |
| B | 5mm |
| C | 1.56 kN |
| Co | 0.8 kN |
| Pu | 0.034 kN |
| Reference speed | 60000 rpm |
| Limiting speed | 17000 rpm |
| Weight | 0.0063 kg |
| D1 | 17.9mm |
| D2 | 22.1mm |
| r1r2 min | 0.3mm |
| da min | 17mm |
| da max | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
| kr | 0.015 |
| fo | 10 |
