SKU: W61801-2Z-EU

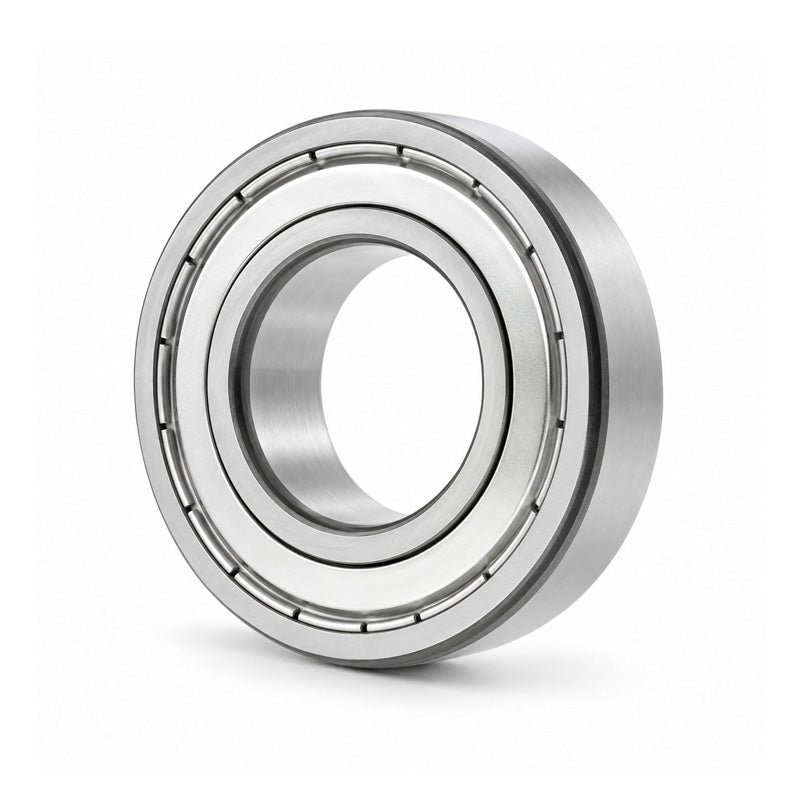

W618012Z Quality Budget Stainless Steel Metal Shielded Thin Section Deep Groove Ball Bearing 12x21x5mm
- Regular price
- €12,83 ex VAT
- Sale price
- €12,83
- Regular price
-
Quantity Price Breaks
W618012Z Quality Budget Stainless Steel Metal Shielded Thin Section Deep Groove Ball Bearing 12x21x5mm
- Regular price
- €12,83 ex VAT
- Sale price
- €12,83
- Regular price
-
Description
|
Stainless Steel Deep Groove Ball Bearings: Designed to resist corrosion, they are ideally suited for application in the food industry and anywhere that requires a bearing which is both hygienic and has high resilience to water. These single-row deep groove ball bearings have the same deep raceway grooves and the close conformity between raceways and balls as standard deep groove ball bearings. They can carry axial loads acting in both directions in addition to radial loads, even at high speeds. Stainless steel deep groove ball bearings have the same running properties as conventional steel deep groove ball bearings, but have a lower load-carrying capacity. The bearings are available in open and sealed designs for shaft diameters from 1 to 50 mm. |
Technical
| d | = | 12mm |
| D | = | 21mm |
| B | = | 5mm |
| C | = | 1.43 kN |
| Co | = | 0.67 kN |
| Pu | = | 0.028 kN |
| Reference speed | = | 70000 rpm |
| Limiting speed | = | 36000 rpm |
| Weight | = | 0.0063 kg |
| D1 | = | 14.1mm |
| D2 | = | 19.1mm |
| r1r2 min | = | 0.3mm |
| da min | = | 14mm |
| da max | = | 14mm |
| Da max | = | 19mm |
| ra max | = | 0.3mm |
| kr | = | 0.015 |
| fo | = | 9.7 |
