SKU: USPG210-SNR

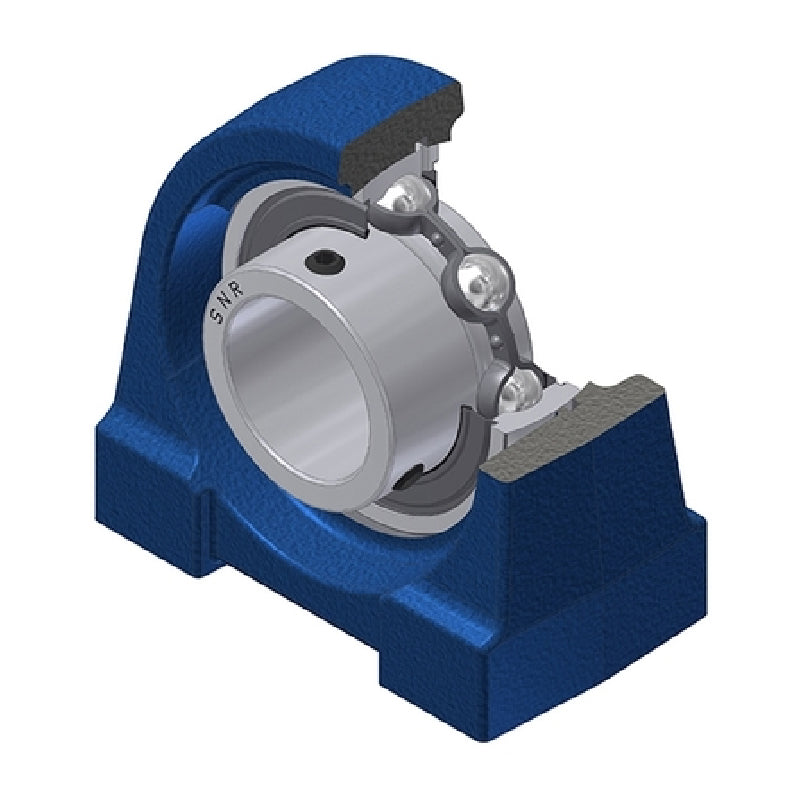

SNR USPG210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 50mm Bore Insert
- Regular price
- €51,28 ex VAT
- Sale price
- €51,28
- Regular price
-
In stock
Quantity Price Breaks
3
€45,64
4
€43,08
9
€42,56
19
€42,05
49
€41,54
99
€41,02
499
€38,46
999
€37,95
1999
€37,43
2999
€36,92
4999
€35,90
SKU:
USPG210-SNR
SNR USPG210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 50mm Bore Insert
- Regular price
- €51,28 ex VAT
- Sale price
- €51,28
- Regular price
-
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical

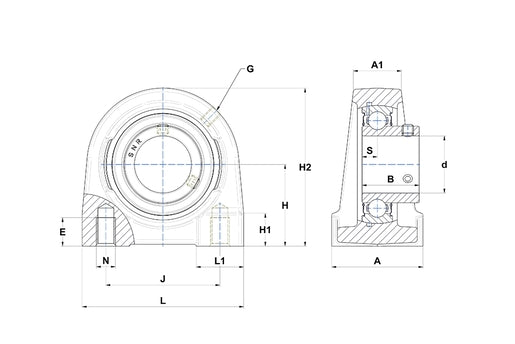

| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| A | = | 60mm |
| A1 | = | 35mm |
| B | = | 43.5mm |
| E | = | 25mm |
| H | = | 57.2mm |
| H1 | = | 21mm |
| H2 | = | 114mm |
| J | = | 95mm |
| L | = | 135mm |
| L1 | = | 40mm |
| N | = | M16 |
| S | = | 10.9mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.76 kg |
