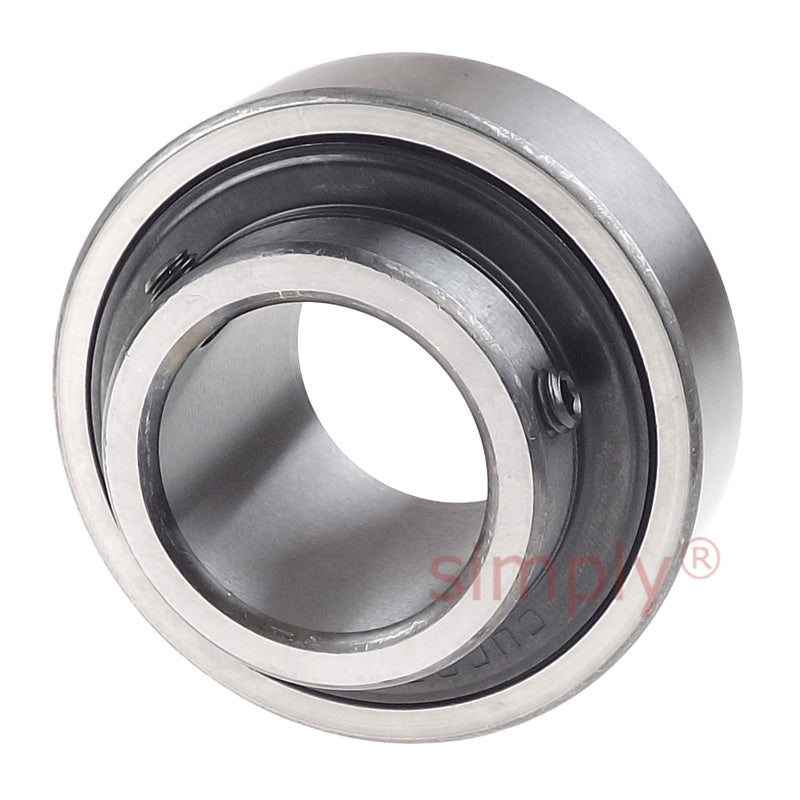

UR205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia

SKU: UR.205

UR205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia

€8,22 ex VAT
€8,22
ex VAT
In stock

Quantity Price Breaks

10+ €7,32
19+ €6,90
29+ €6,82
39+ €6,74
49+ €6,66
74+ €6,58
99+ €6,17
199+ €6,08
249+ €6,00
499+ €5,92
999+ €5,75
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UR205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia
SKU: UR.205

UR205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia

€8,22 ex VAT
€8,22
ex VAT

Description

UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Technical

d = 25mm
D = 52mm
Bi = 34.1mm
Be = 17mm
N = 14.3mm
M = 19.8mm
G = 5mm
ds = M6x1, 1/4-28UNF
Dynamic Load = 140000 N
Static Load = 7850 N
Weight = 0.2 kg
