SKU: UJSN22X10-MB

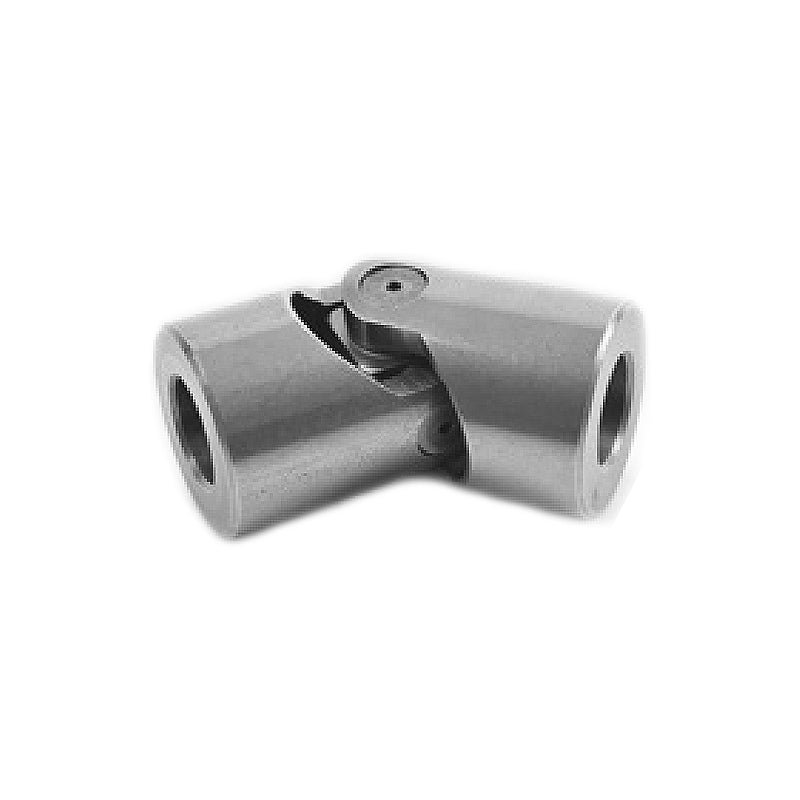

Major Brand UJSN22X10 Steel Universal Single Joint with Needle Roller Bearing 10x22x48mm
- Regular price
- €86,59 ex VAT
- Sale price
- €86,59
- Regular price
-
Quantity Price Breaks
Major Brand UJSN22X10 Steel Universal Single Joint with Needle Roller Bearing 10x22x48mm
- Regular price
- €86,59 ex VAT
- Sale price
- €86,59
- Regular price
-
Description
UJSN Steel Universal Single Joint with Needle Roller Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a needle roller bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
Technical
| Bore d H7 | = | 10mm |
| Diameter D | = | 22mm |
| Overall length L2 | = | 48mm |
| Pivot centre L1 | = | 24mm |
| Hub length C | = | 12mm |
| Maximum working angle | = | 45 degrees |
| Maximum speed | = | 4000 rpm |
| Maximum power | = | 40kW |
| Maximum torque | = | 200 Nm |
| Weight KG | = | 0.1 kg |
