SKU: UJDP32X16-MB

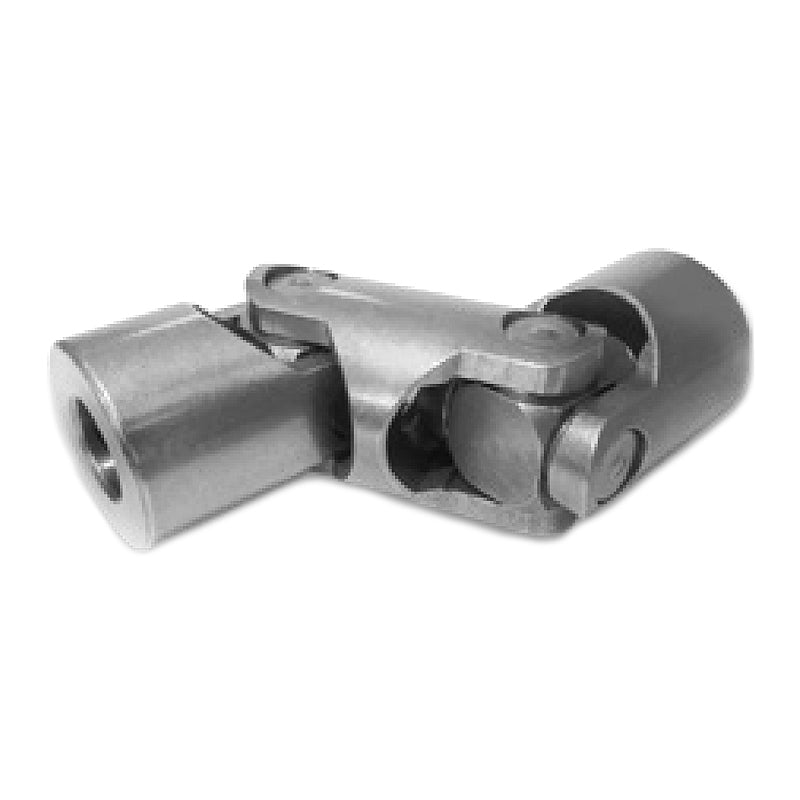

Major Brand UJDP32X16 Steel Universal Double Joint with Plain Bearing 16x32x104mm
- Regular price
- €103,49 ex VAT
- Sale price
- €103,49
- Regular price
-
Quantity Price Breaks
Major Brand UJDP32X16 Steel Universal Double Joint with Plain Bearing 16x32x104mm
- Regular price
- €103,49 ex VAT
- Sale price
- €103,49
- Regular price
-
Description
UJDP Steel Universal Double Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features two hinges at 90 degrees to each other, connected by a cross shaft. This universal joint is double-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power. Double cardan joints use two-phased universal joints to reduce variations in angular velocity.
Benefits: High-quality, high-performance, adaptable to misaligned shafts

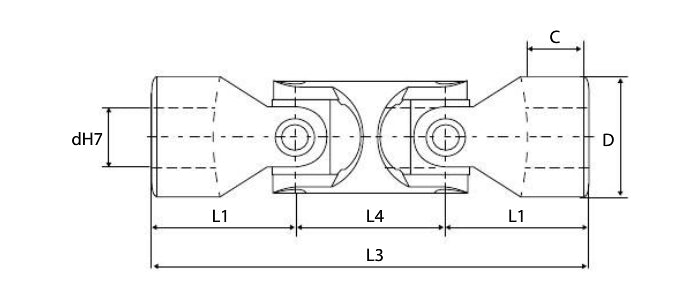

Technical
| Bore d H7 | = | 16mm |
| Diameter D | = | 32mm |
| Overall length L3 | = | 104mm |
| Pivot to face centre L1 | = | 34mm |
| Pivot to pivot centre L4 | = | 36mm |
| Hub length C | = | 16mm |
| Maximum working angle | = | 90 degrees |
| Maximum speed | = | 1000 rpm |
| Maximum power | = | 6kW |
| Maximum torque | = | 600 Nm |
| Gaiter type | = | UJG1M32 |
| Weight KG | = | 0.45 kg |
