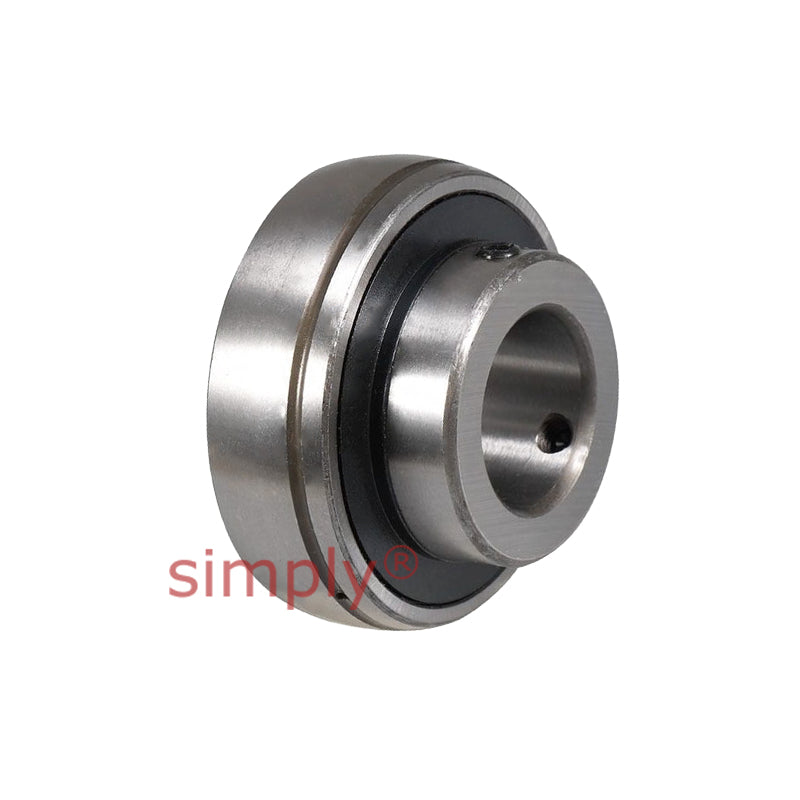

UCW201-8 Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia

SKU: UCW.201-8

UCW201-8 Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia

€10,24 ex VAT
€10,24
ex VAT
Not in stock

Quantity Price Breaks

3 €9,11
4 €8,60
9 €8,50
19 €8,40
49 €8,29
99 €8,19
499 €7,68
999 €7,58
1999 €7,48
2999 €7,37
4999 €7,17
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UCW201-8 Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia
SKU: UCW.201-8

UCW201-8 Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia

€10,24 ex VAT
€10,24
ex VAT

Description

UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Technical

d = 1/2 inch
D = 40mm
Bi = 27.4mm
Be = 14mm
n = 11.5mm
m = 15.9mm
G = 4.2mm
Grub screw = 10-32 UNF
Weight = 0.12 kg
Dynamic load = 973 kgf
Static load = 487 kgf
