SKU: UCTX07-22
UCTX07-22 Imperial Cast Iron Take Up Unit Housing with 1-3/8 inch Bore Insert
- Regular price
- €45,29 ex VAT
- Sale price
- €45,29
- Regular price
-
In stock
Quantity Price Breaks
10+
€40,31
19+
€38,04
29+
€37,59
39+
€37,14
49+
€36,68
74+
€36,23
99+
€33,97
199+
€33,51
249+
€33,06
499+
€32,61
999+
€31,70
SKU:
UCTX07-22
UCTX07-22 Imperial Cast Iron Take Up Unit Housing with 1-3/8 inch Bore Insert
- Regular price
- €45,29 ex VAT
- Sale price
- €45,29
- Regular price
-
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

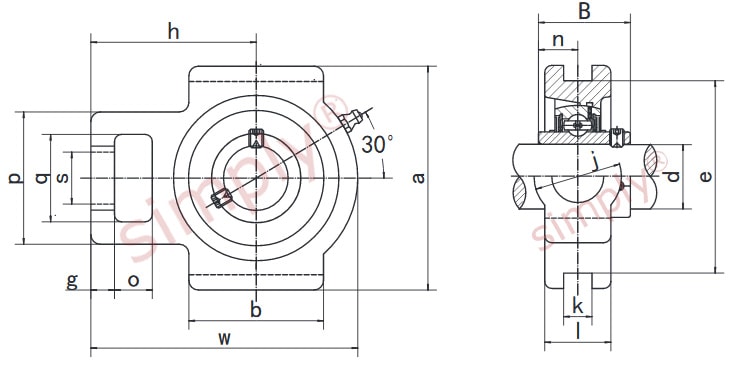

Technical
| d | = | 1-3/8 inch |
| o | = | 3/4 inch |
| g | = | 21/32 inch |
| p | = | 3-17/64 inch |
| q | = | 1-15/16 inch |
| s | = | 1-9/64 inch |
| b | = | 3-17/64 inch |
| k | = | 0.63 inch |
| e | = | 4-1/64 inch |
| a | = | 4-31/64 inch |
| w | = | 5-43/64 inch |
| j | = | 1-13/32 inch |
| l | = | 1-15/16 inch |
| h | = | 3-15/32 inch |
| B | = | 1.937 inch |
| n | = | 0.748 inch |
| Bearing no | = | UCX07-22 |
| Housing no | = | TX07 |
| Weight | = | 2.6 kg |
