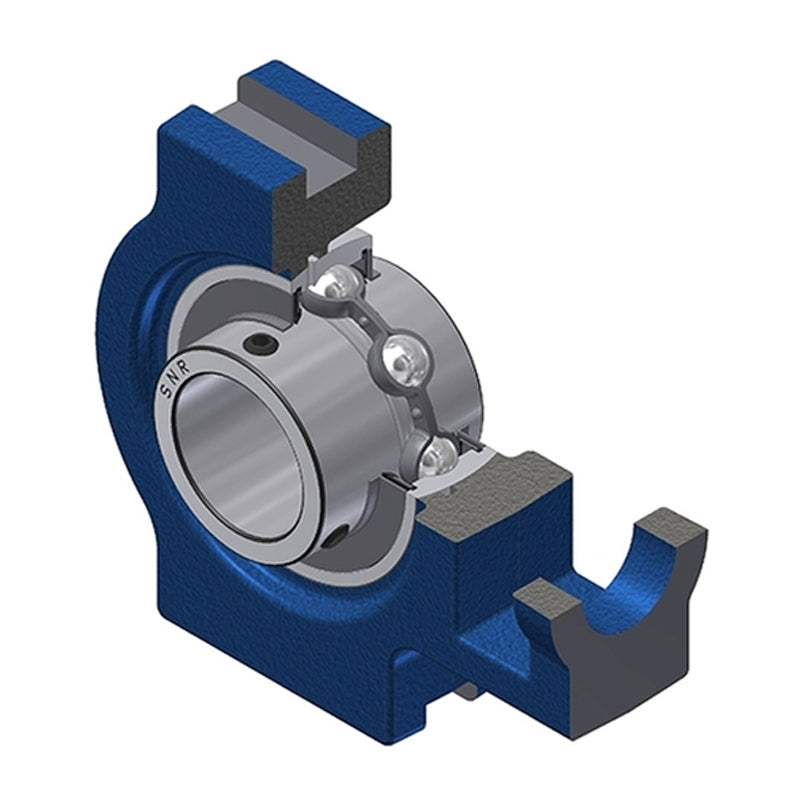

SNR UCT322 Metric Cast Iron Take Up Unit with 110mm Bore Bearing Unit - Allow 2-3 Days
SNR UCT322 Metric Cast Iron Take Up Unit with 110mm Bore Bearing Unit - Allow 2-3 Days
Regular price
€683,08
ex VAT
Regular price
Sale price
€683,08
ex VAT
In stock
Price Break
3+
€519,11
4+
€489,94
9+
€484,11
19+
€478,28
49+
€472,45
99+
€466,61
499+
€437,45
999+
€431,62
1999+
€425,78
2999+
€419,95
4999+
€408,29
Quantity
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 110mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 110mm |
| A | 130mm |
| A1 | 38mm |
| A2 | 80mm |
| B | 117mm |
| H | 320mm |
| H1 | 285mm |
| H2 | 185mm |
| L | 385mm |
| L1 | 235mm |
| L2 | 40mm |
| L3 | 215mm |
| N | 65mm |
| N1 | 52mm |
| N2 | 125mm |
| S | 46mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 205 kN |
| Static load C0 | 178 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 38.6 kg |
