SKU: UCT308

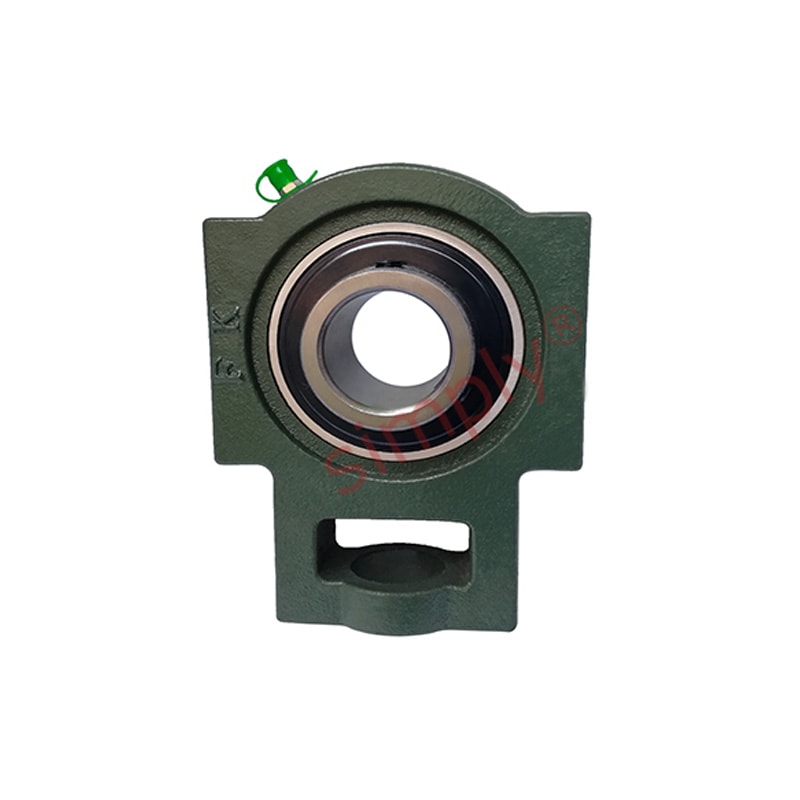

UCT308 Metric Cast Iron Take Up Unit Housing with 40mm Bore Insert
- Regular price
- €40,23 ex VAT
- Sale price
- €40,23
- Regular price
-
Not in stock
Quantity Price Breaks
3
€35,80
4
€33,79
9
€33,39
19
€32,99
49
€32,59
99
€32,18
499
€30,17
999
€29,77
1999
€29,37
2999
€28,97
4999
€28,16
SKU:
UCT308
UCT308 Metric Cast Iron Take Up Unit Housing with 40mm Bore Insert
- Regular price
- €40,23 ex VAT
- Sale price
- €40,23
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 40mm |
| o | = | 22mm |
| g | = | 19mm |
| p | = | 83mm |
| q | = | 50mm |
| s | = | 32mm |
| b | = | 89mm |
| k | = | 18mm |
| e | = | 112mm |
| a | = | 124mm |
| w | = | 162mm |
| j | = | 50mm |
| l | = | 34mm |
| h | = | 100mm |
| B | = | 52mm |
| n | = | 19mm |
| Bearing no | = | UC308 |
| Housing no | = | T308 |
| Weight | = | 2.9 kg |
