SKU: UCT211-32-SNR

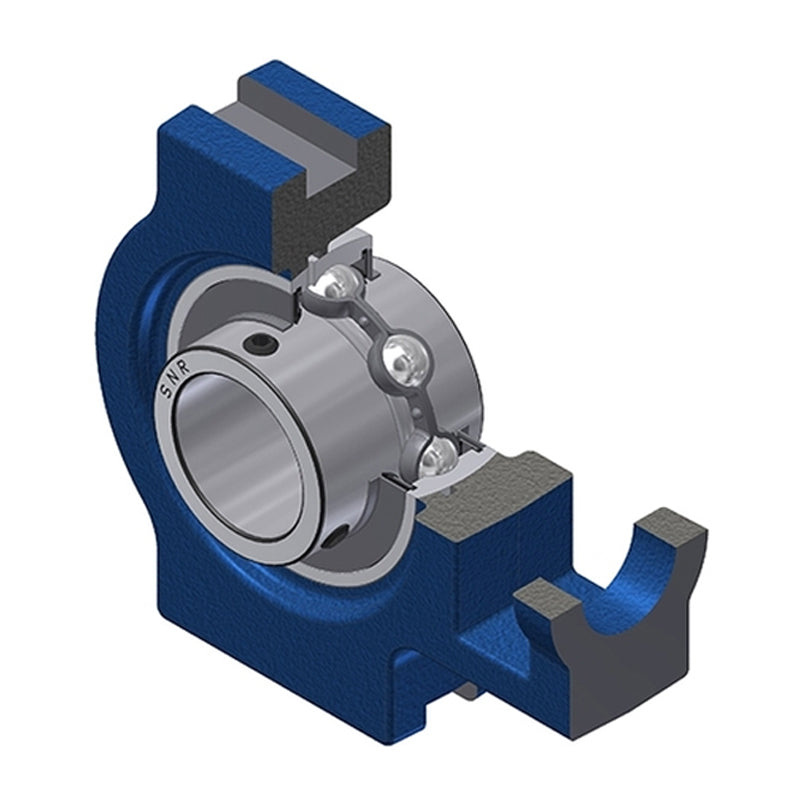

SNR UCT211-32 Imperial Cast Iron Take Up Unit with 2 inch Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €71,57 ex VAT
- Sale price
- €71,57
- Regular price
-
Not in stock
Quantity Price Breaks
3
€63,70
4
€60,12
9
€59,40
19
€58,69
49
€57,97
99
€57,26
499
€53,68
999
€52,96
1999
€52,25
2999
€51,53
4999
€50,10
SKU:
UCT211-32-SNR
SNR UCT211-32 Imperial Cast Iron Take Up Unit with 2 inch Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €71,57 ex VAT
- Sale price
- €71,57
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 2 inch |
| A | = | 64mm |
| A1 | = | 22mm |
| A2 | = | 38mm |
| B | = | 55.6mm |
| H | = | 146mm |
| H1 | = | 130mm |
| H2 | = | 102mm |
| L | = | 171mm |
| L1 | = | 106mm |
| L2 | = | 19mm |
| L3 | = | 95mm |
| N | = | 35mm |
| N1 | = | 25mm |
| N2 | = | 64mm |
| S | = | 22.2mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 43.55 kN |
| Static load C0 | = | 29.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 4.07 kg |
