SKU: UCT.206

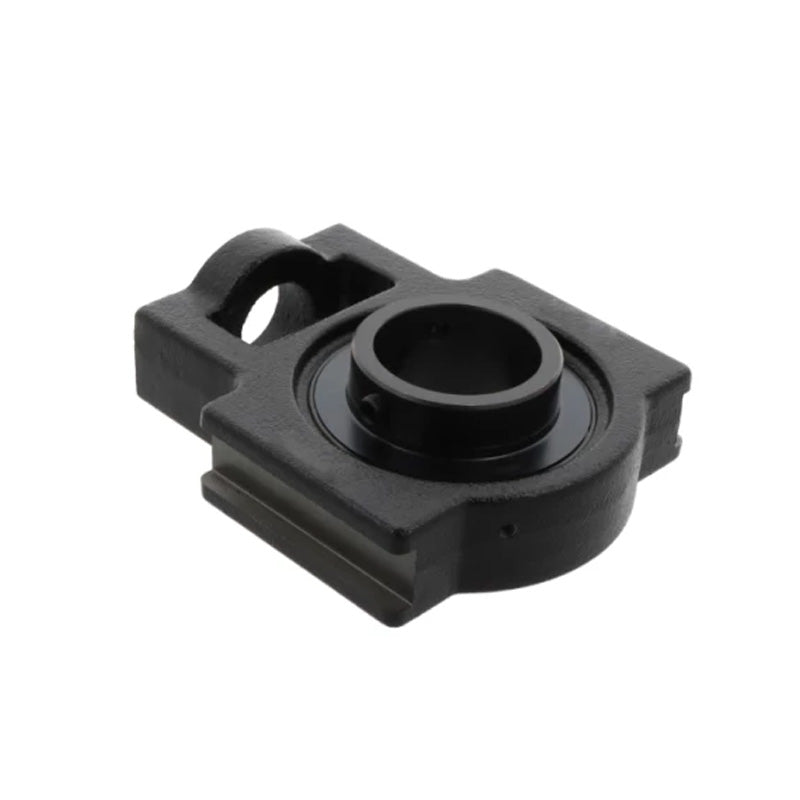

UCT206 Metric Series Cast Iron Take Up Unit Housing with 30mm Bore Bearing Unit
- Regular price
- €17,28 ex VAT
- Sale price
- €17,28
- Regular price
-
In stock
Quantity Price Breaks
3
€15,38
4
€14,52
9
€14,34
19
€14,17
49
€14,00
99
€13,82
499
€12,96
999
€12,79
1999
€12,61
2999
€12,44
4999
€12,10
SKU:
UCT.206
UCT206 Metric Series Cast Iron Take Up Unit Housing with 30mm Bore Bearing Unit
- Regular price
- €17,28 ex VAT
- Sale price
- €17,28
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 30mm |
| o | = | 16mm |
| g | = | 10mm |
| p | = | 56mm |
| q | = | 37mm |
| s | = | 22mm |
| b | = | 57mm |
| k | = | 12mm |
| e | = | 89mm |
| a | = | 102mm |
| W | = | 113mm |
| j | = | 37mm |
| L | = | 28mm |
| h | = | 70mm |
| Bi | = | 38.1mm |
| n | = | 15.9mm |
| Weight | = | 1.3 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
| Rec max speed | = | 5300 rpm |
