SKU: UCT.204-12

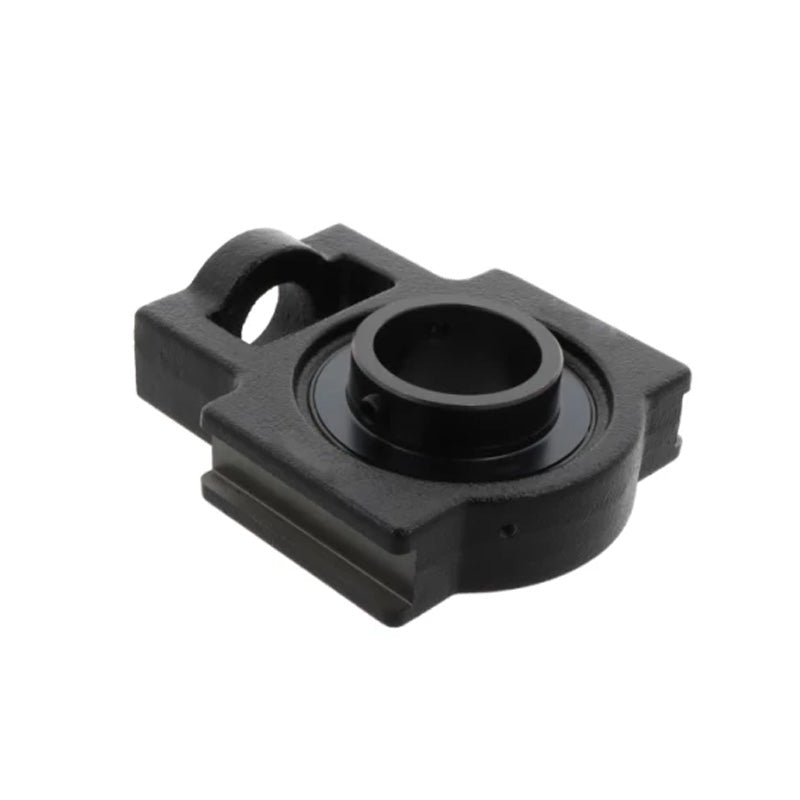

UCT204-12 Metric Series Cast Iron Take Up Unit Housing with 3/4 inch Bore Bearing Unit
- Regular price
- €15,42 ex VAT
- Sale price
- €15,42
- Regular price
-
In stock
Quantity Price Breaks
3
€13,72
4
€12,95
9
€12,80
19
€12,64
49
€12,49
99
€12,34
499
€11,57
999
€11,41
1999
€11,26
2999
€11,10
4999
€10,79
SKU:
UCT.204-12
UCT204-12 Metric Series Cast Iron Take Up Unit Housing with 3/4 inch Bore Bearing Unit
- Regular price
- €15,42 ex VAT
- Sale price
- €15,42
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 3/4 inch |
| o | = | 16mm |
| g | = | 10mm |
| p | = | 51mm |
| q | = | 32mm |
| s | = | 19mm |
| b | = | 51mm |
| k | = | 12mm |
| e | = | 76mm |
| a | = | 89mm |
| W | = | 94mm |
| j | = | 32mm |
| L | = | 21mm |
| h | = | 61mm |
| Bi | = | 31mm |
| n | = | 12.7mm |
| Weight | = | 0.79 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
| Rec max speed | = | 7450 rpm |
