SKU: UCPX.18-56

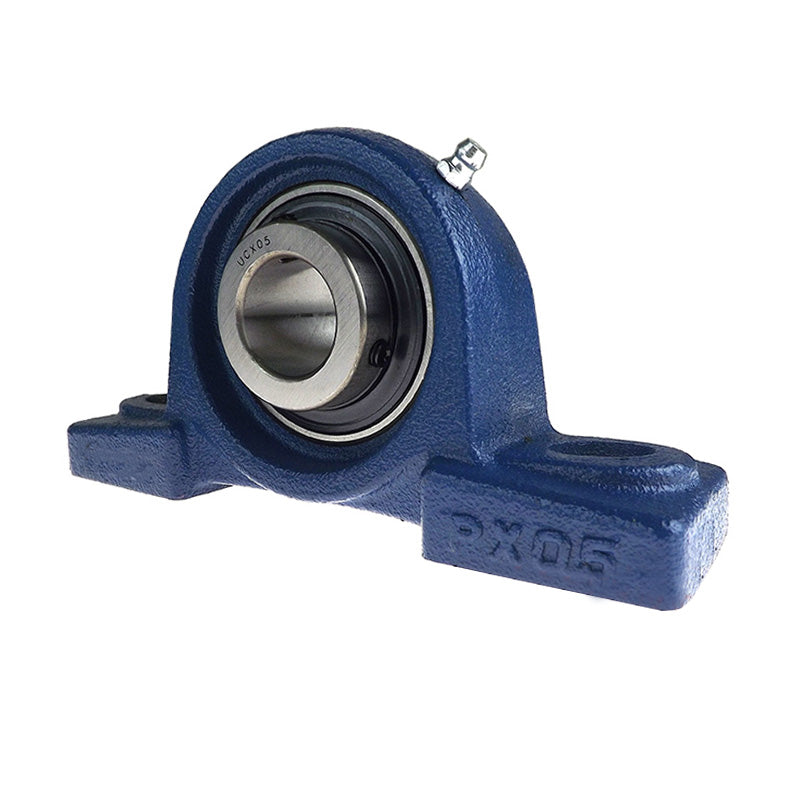

UCPX18-56 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 3-1/2 inch Bore Insert
- Regular price
- €364,07 ex VAT
- Sale price
- €364,07
- Regular price
-
Not in stock
Quantity Price Breaks
3
€324,02
4
€305,82
9
€302,18
19
€298,54
49
€294,90
99
€291,26
499
€273,05
999
€269,41
1999
€265,77
2999
€262,13
4999
€254,85
SKU:
UCPX.18-56
UCPX18-56 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 3-1/2 inch Bore Insert
- Regular price
- €364,07 ex VAT
- Sale price
- €364,07
- Regular price
-
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 3-1/2 inch |
| h | = | 101.6mm |
| a | = | 381mm |
| e | = | 283mm |
| b | = | 111mm |
| s2 | = | 60mm |
| s1 | = | 27mm |
| g | = | 45mm |
| w | = | 204mm |
| B1 | = | 104mm |
| n | = | 42.9mm |
| Bolt Size | = | M22 |
| Weight | = | 18 kg |
| Dynamic load | = | 10900 kgf |
| Static load | = | 8170 kgf |
