SKU: UCP.310

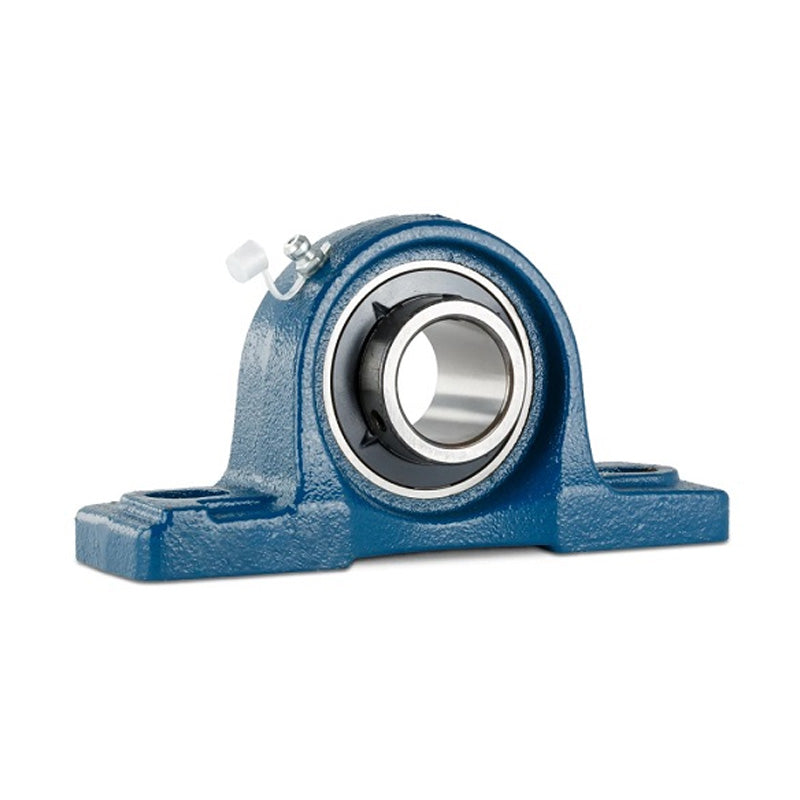

UCP310 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 50mm Bore Insert
- Regular price
- €66,92 ex VAT
- Sale price
- €66,92
- Regular price
-
In stock
Quantity Price Breaks
3
€59,56
4
€56,21
9
€55,54
19
€54,87
49
€54,21
99
€53,54
499
€50,19
999
€49,52
1999
€48,85
2999
€48,18
4999
€46,84
SKU:
UCP.310
UCP310 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 50mm Bore Insert
- Regular price
- €66,92 ex VAT
- Sale price
- €66,92
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 50mm |
| h | = | 75mm |
| a | = | 275mm |
| e | = | 212mm |
| b | = | 75mm |
| s2 | = | 35mm |
| s1 | = | 20mm |
| g | = | 27mm |
| w | = | 143mm |
| b1 | = | 61mm |
| n | = | 22mm |
| Bolt | = | 16mm |
| Weight | = | 6.4 kg |
| Dynamic load | = | 4850 kgf |
| Static load | = | 3640 kgf |
