SKU: UCP.218

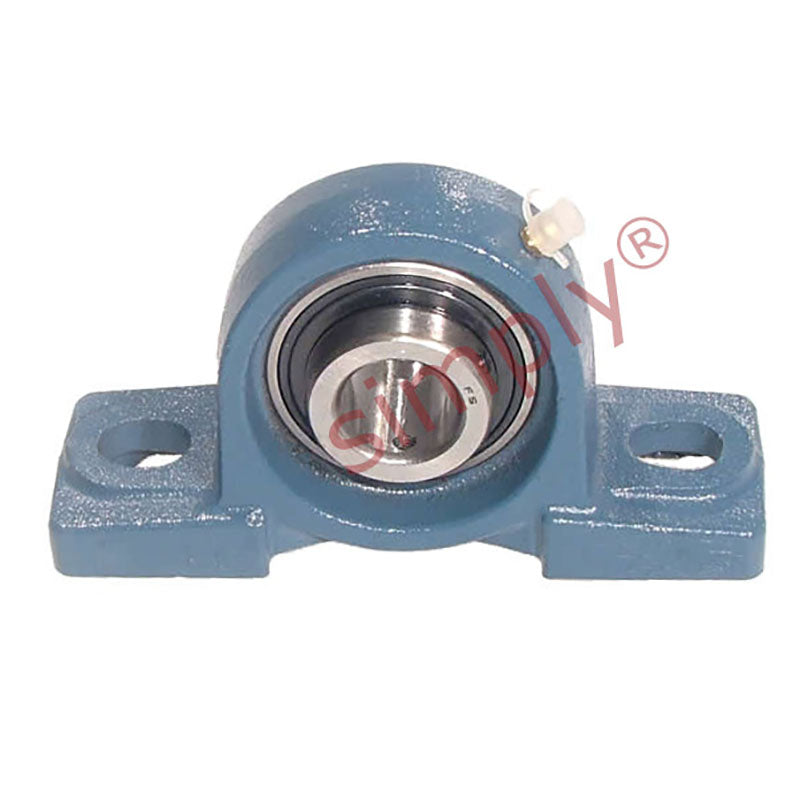

UCP218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert
- Regular price
- €144,84 ex VAT
- Sale price
- €144,84
- Regular price
-
In stock
Quantity Price Breaks
3
€128,91
4
€121,67
9
€120,22
19
€118,77
49
€117,32
99
€115,87
499
€108,63
999
€107,18
1999
€105,73
2999
€104,28
4999
€101,39
SKU:
UCP.218
UCP218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert
- Regular price
- €144,84 ex VAT
- Sale price
- €144,84
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 90mm |
| h | = | 101.6mm |
| a | = | 327mm |
| e | = | 262mm |
| b | = | 88mm |
| s2 | = | 33mm |
| s1 | = | 27mm |
| g | = | 34mm |
| w | = | 200mm |
| B1 | = | 96mm |
| n | = | 39.7mm |
| Bolt Size | = | M22 |
| Weight | = | 14.3 kg |
| Dynamic load | = | 7500 kgf |
| Static load | = | 6170 kgf |
| Rec max speed | = | 1900 rpm |
