SKU: UCP.216

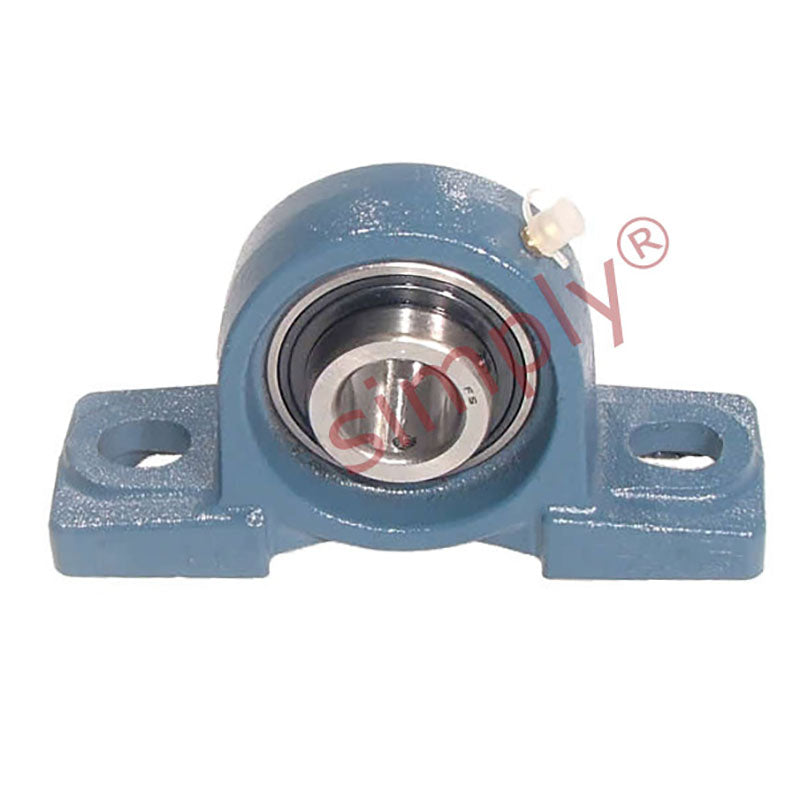

UCP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert
- Regular price
- €99,74 ex VAT
- Sale price
- €99,74
- Regular price
-
In stock
Quantity Price Breaks
3
€88,77
4
€83,78
9
€82,78
19
€81,79
49
€80,79
99
€79,79
499
€74,81
999
€73,81
1999
€72,81
2999
€71,81
4999
€69,82
SKU:
UCP.216
UCP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert
- Regular price
- €99,74 ex VAT
- Sale price
- €99,74
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 80mm |
| h | = | 88.9mm |
| a | = | 292mm |
| e | = | 232mm |
| b | = | 78mm |
| s2 | = | 31mm |
| s1 | = | 25mm |
| g | = | 30mm |
| w | = | 175mm |
| B1 | = | 82.6mm |
| n | = | 33.3mm |
| Bolt Size | = | M20 |
| Weight | = | 9 kg |
| Dynamic load | = | 5700 kgf |
| Static load | = | 4550 kgf |
| Rec max speed | = | 2150 rpm |
