SKU: UCP.212-38

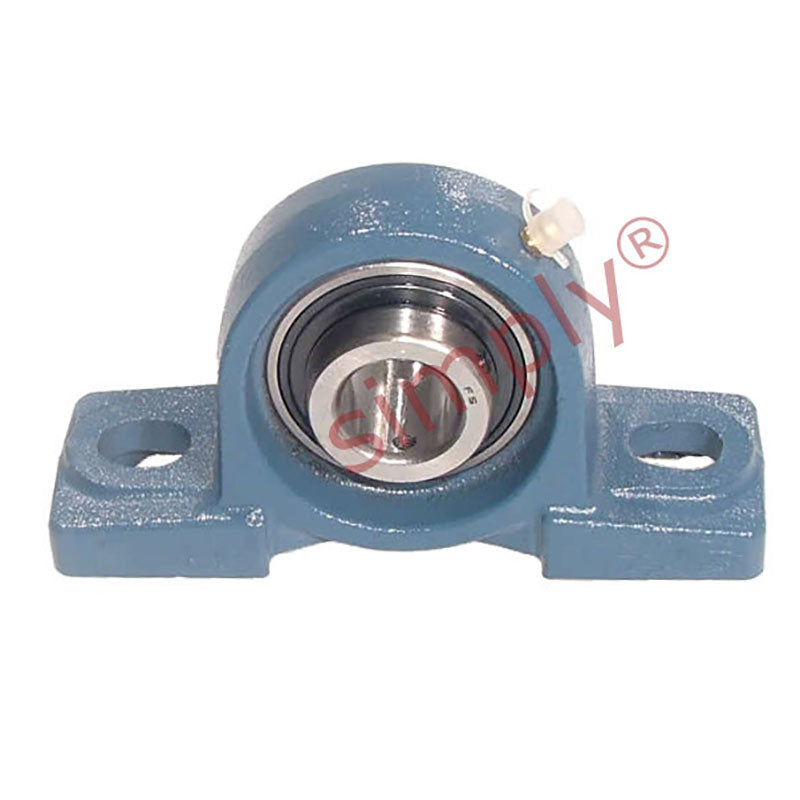

UCP212-38 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/8 inch Bore Insert
- Regular price
- €79,22 ex VAT
- Sale price
- €79,22
- Regular price
-
In stock
Quantity Price Breaks
3
€70,51
4
€66,54
9
€65,75
19
€64,96
49
€64,17
99
€63,38
499
€59,42
999
€58,62
1999
€57,83
2999
€57,04
4999
€55,45
SKU:
UCP.212-38
UCP212-38 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/8 inch Bore Insert
- Regular price
- €79,22 ex VAT
- Sale price
- €79,22
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 2-3/8 inch |
| h | = | 69.8mm |
| a | = | 241mm |
| e | = | 184mm |
| b | = | 70mm |
| s2 | = | 25mm |
| s1 | = | 20mm |
| g | = | 25mm |
| w | = | 137mm |
| B1 | = | 65.1mm |
| n | = | 25.4mm |
| Bolt Size | = | M16 |
| Weight | = | 4.8 kg |
| Dynamic load | = | 4100 kgf |
| Static load | = | 3150 kgf |
