SKU: UCP.209-28

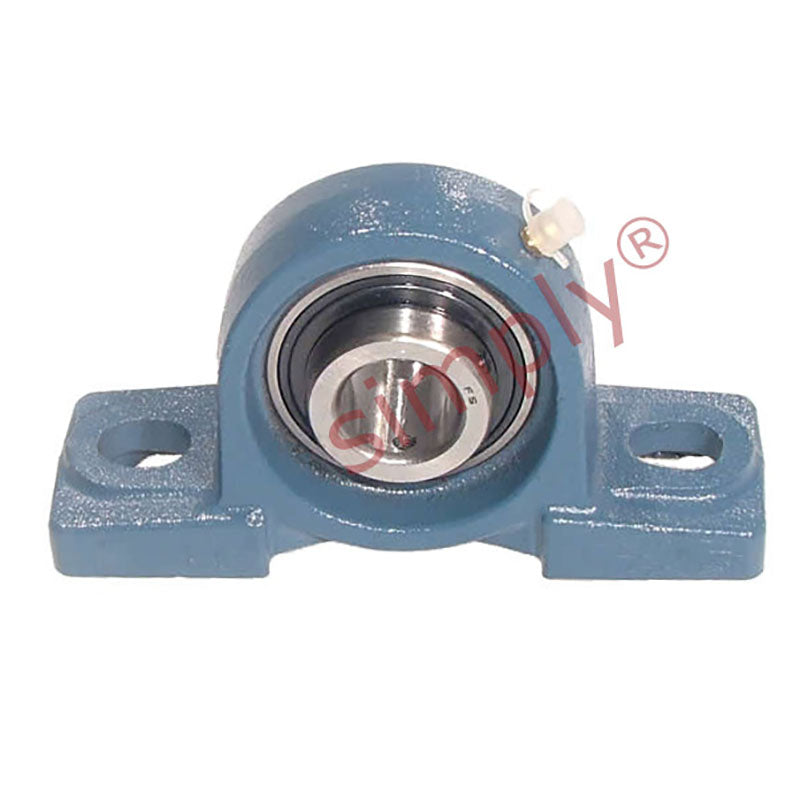

UCP209-28 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Bore Insert
- Regular price
- €29,70 ex VAT
- Sale price
- €29,70
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€26,43
4
€24,95
9
€24,65
19
€24,35
49
€24,06
99
€23,76
499
€22,28
999
€21,98
1999
€21,68
2999
€21,38
4999
€20,79
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-3/4 inch |
| h | = | 54mm |
| a | = | 190mm |
| e | = | 146mm |
| b | = | 54mm |
| s2 | = | 21mm |
| s1 | = | 17mm |
| g | = | 20mm |
| w | = | 106mm |
| B1 | = | 49.2mm |
| n | = | 19mm |
| Bolt Size | = | M14 |
| Weight | = | 2.2 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 3700 rpm |
