SKU: UCHA215

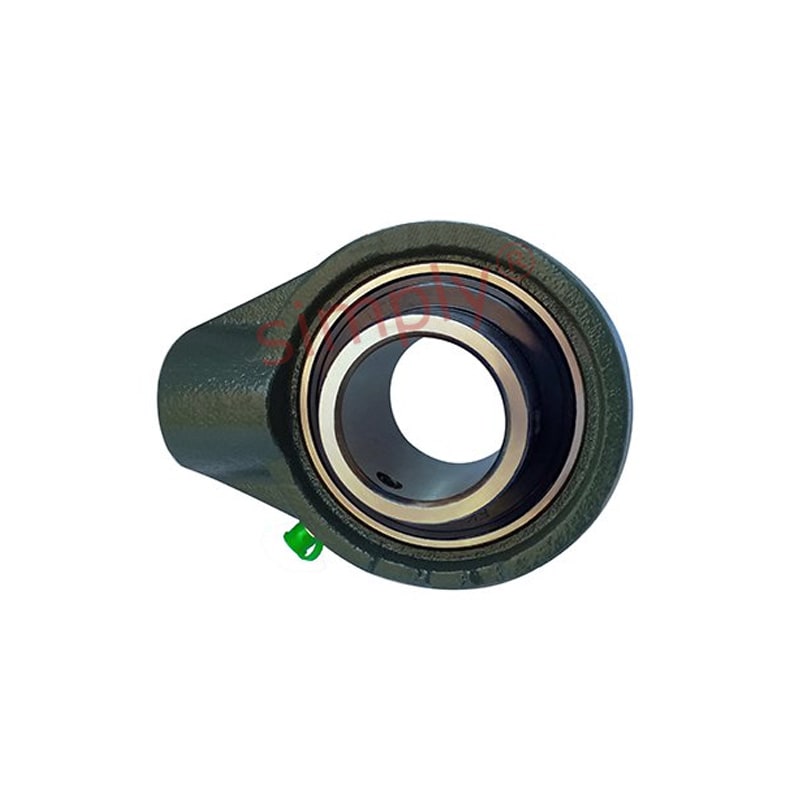

UCHA215 Metric Cast Iron Hanger Bearing Unit with 75mm Bore Insert
- Regular price
- €236,04 ex VAT
- Sale price
- €236,04
- Regular price
-
Not in stock
Quantity Price Breaks
3
€210,08
4
€198,27
9
€195,91
19
€193,55
49
€191,19
99
€188,83
499
€177,03
999
€174,67
1999
€172,31
2999
€169,95
4999
€165,23
SKU:
UCHA215
UCHA215 Metric Cast Iron Hanger Bearing Unit with 75mm Bore Insert
- Regular price
- €236,04 ex VAT
- Sale price
- €236,04
- Regular price
-
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 75mm |
| h | = | 117mm |
| w | = | 200mm |
| b | = | 166mm |
| c | = | 9.5mm |
| a | = | 70mm |
| s | = | G1-1/2 |
| l | = | 32mm |
| B | = | 77.8mm |
| n | = | 33.3mm |
| Bearing no | = | UC215 |
| Housing no | = | HA215 |
| Weight | = | 5.414 kg |
