SKU: UCHA212-36

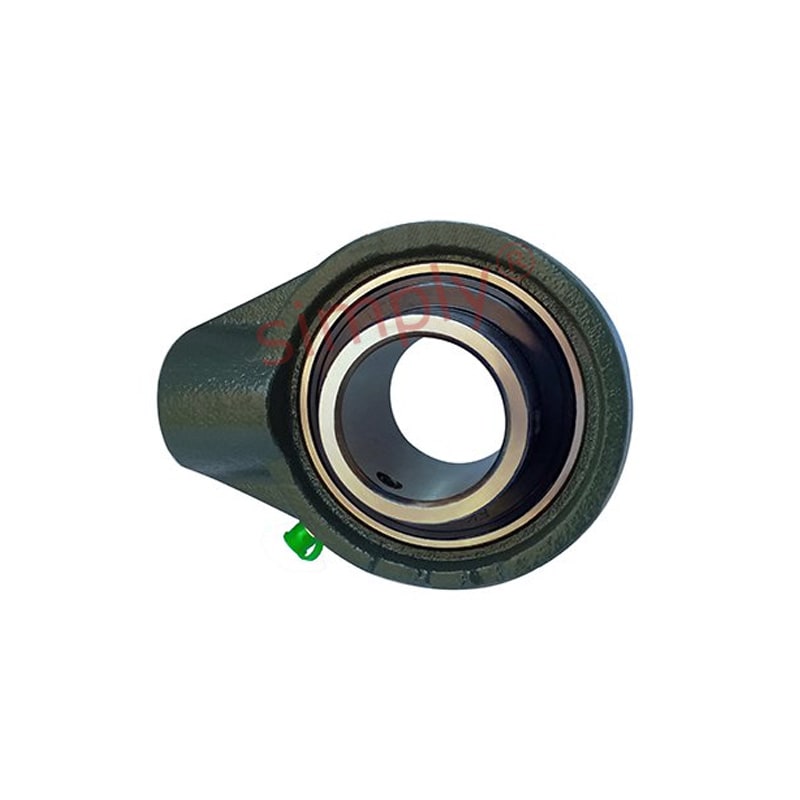

UCHA212-36 Imperial Cast Iron Hanger Bearing Unit with 2-1/4 inch Bore Insert
- Regular price
- €80,97 ex VAT
- Sale price
- €80,97
- Regular price
-
Not in stock
Quantity Price Breaks
3
€72,06
4
€68,01
9
€67,21
19
€66,40
49
€65,59
99
€64,78
499
€60,73
999
€59,92
1999
€59,11
2999
€58,30
4999
€56,68
SKU:
UCHA212-36
UCHA212-36 Imperial Cast Iron Hanger Bearing Unit with 2-1/4 inch Bore Insert
- Regular price
- €80,97 ex VAT
- Sale price
- €80,97
- Regular price
-
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 2-1/4 inch |
| h | = | 4-1/64 inch |
| w | = | 6-13/16 inch |
| b | = | 5-19/32 inch |
| c | = | 23/64 inch |
| a | = | 2-23/64 inch |
| s | = | G1-1/4 |
| l | = | 1-7/64 inch |
| B | = | 2.563 inch |
| n | = | 1 inch |
| Bearing no | = | UC212-36 |
| Housing no | = | HA212 |
| Weight | = | 3.685 kg |
