SKU: UCHA211-35

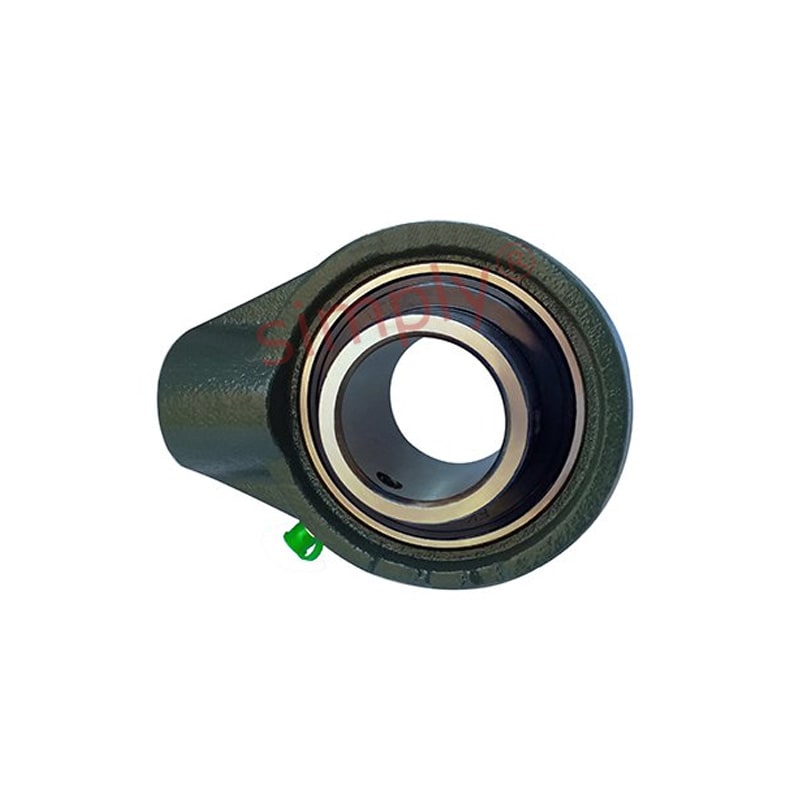

UCHA211-35 Imperial Cast Iron Hanger Bearing Unit with 2-3/16 inch Bore Insert
- Regular price
- €58,24 ex VAT
- Sale price
- €58,24
- Regular price
-
Not in stock
Quantity Price Breaks
3
€51,83
4
€48,92
9
€48,34
19
€47,76
49
€47,17
99
€46,59
499
€43,68
999
€43,10
1999
€42,52
2999
€41,93
4999
€40,77
SKU:
UCHA211-35
UCHA211-35 Imperial Cast Iron Hanger Bearing Unit with 2-3/16 inch Bore Insert
- Regular price
- €58,24 ex VAT
- Sale price
- €58,24
- Regular price
-
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 2-3/16 inch |
| h | = | 3-27/64 inch |
| w | = | 5-29/32 inch |
| b | = | 4-61/64 inch |
| c | = | 9/32 inch |
| a | = | 2-23/64 inch |
| s | = | G1-1/4 |
| l | = | 63/64 inch |
| B | = | 2.189 inch |
| n | = | 0.874 inch |
| Bearing no | = | UC211-35 |
| Housing no | = | HA211 |
| Weight | = | 2.427 kg |
