SKU: UCHA210-30

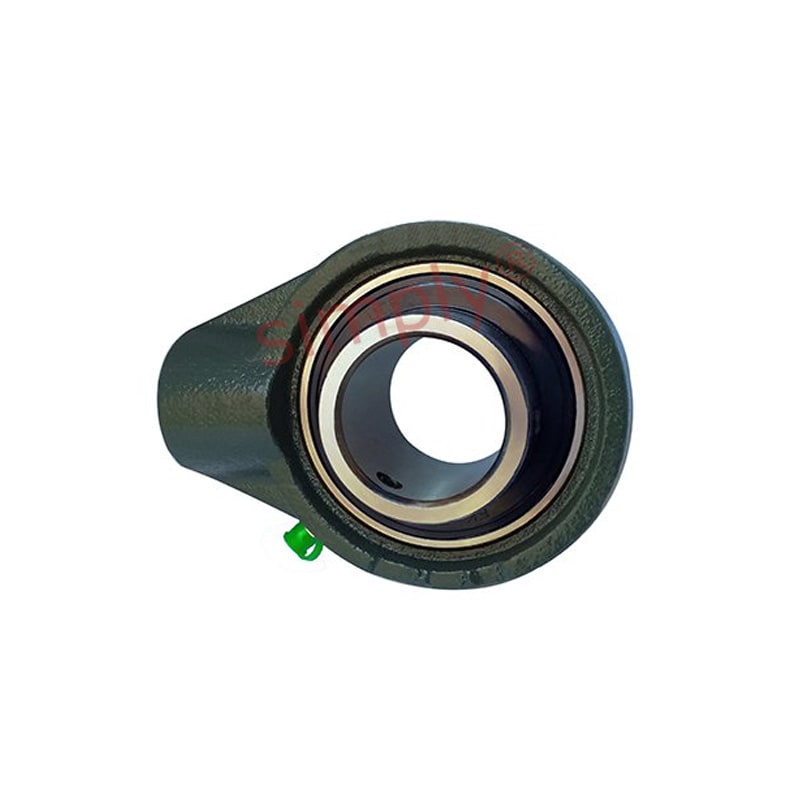

UCHA210-30 Imperial Cast Iron Hanger Bearing Unit with 1-7/8 inch Bore Insert
- Regular price
- €54,59 ex VAT
- Sale price
- €54,59
- Regular price
-
Not in stock
Quantity Price Breaks
3
€48,59
4
€45,86
9
€45,31
19
€44,76
49
€44,22
99
€43,67
499
€40,94
999
€40,40
1999
€39,85
2999
€39,30
4999
€38,21
SKU:
UCHA210-30
UCHA210-30 Imperial Cast Iron Hanger Bearing Unit with 1-7/8 inch Bore Insert
- Regular price
- €54,59 ex VAT
- Sale price
- €54,59
- Regular price
-
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-7/8 inch |
| h | = | 3-17/64 inch |
| w | = | 5-19/32 inch |
| b | = | 4-41/64 inch |
| c | = | 13/64 inch |
| a | = | 1-57/64 inch |
| s | = | G1 |
| l | = | 53/64 inch |
| B | = | 2.0315 inch |
| n | = | 0.748 inch |
| Bearing no | = | UC210-30 |
| Housing no | = | HA210 |
| Weight | = | 2.11 kg |
