SKU: UCHA207-23

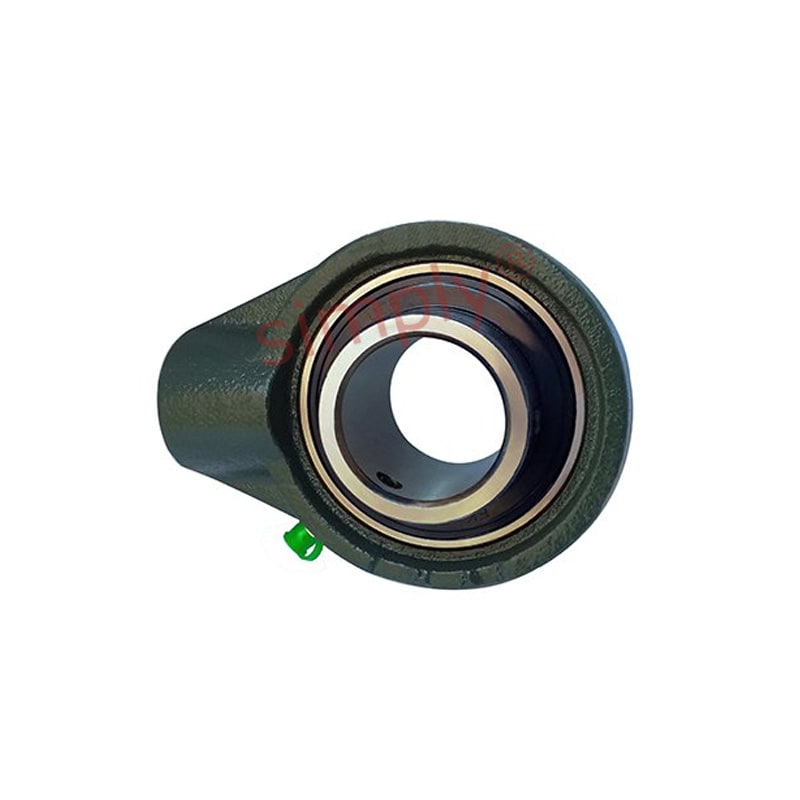

UCHA207-23 Imperial Cast Iron Hanger Bearing Unit with 1-7/16 inch Bore Insert
- Regular price
- €28,01 ex VAT
- Sale price
- €28,01
- Regular price
-
Not in stock
Quantity Price Breaks
3
€24,93
4
€23,53
9
€23,25
19
€22,97
49
€22,69
99
€22,41
499
€21,01
999
€20,73
1999
€20,45
2999
€20,17
4999
€19,61
SKU:
UCHA207-23
UCHA207-23 Imperial Cast Iron Hanger Bearing Unit with 1-7/16 inch Bore Insert
- Regular price
- €28,01 ex VAT
- Sale price
- €28,01
- Regular price
-
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-7/16 inch |
| h | = | 2-3/4 inch |
| w | = | 4-9/16 inch |
| b | = | 3-5/8 inch |
| c | = | 0 inch |
| a | = | 1-37/64 inch |
| s | = | G-3/4 |
| l | = | 3/4 inch |
| B | = | 1.689 inch |
| n | = | 0.689 inch |
| Bearing no | = | UC207-23 |
| Housing no | = | HA207 |
| Weight | = | 1.074 kg |
