SKU: UCHA204-12

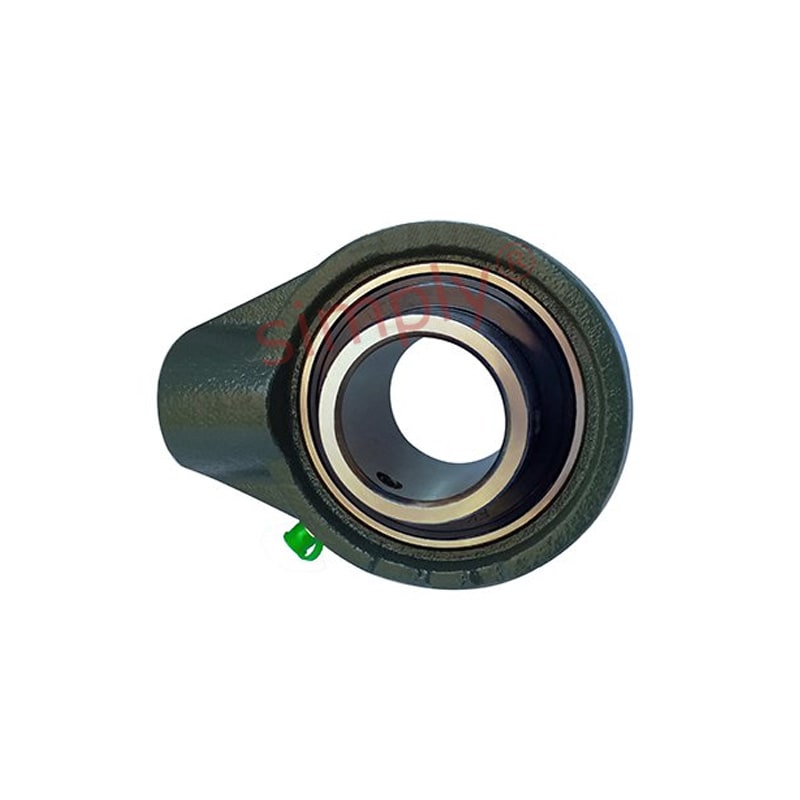

UCHA204-12 Imperial Cast Iron Hanger Bearing Unit with 3/4 inch Bore Insert
- Regular price
- €14,71 ex VAT
- Sale price
- €14,71
- Regular price
-
In stock
Quantity Price Breaks
3
€13,09
4
€12,36
9
€12,21
19
€12,06
49
€11,92
99
€11,77
499
€11,03
999
€10,89
1999
€10,74
2999
€10,59
4999
€10,30
SKU:
UCHA204-12
UCHA204-12 Imperial Cast Iron Hanger Bearing Unit with 3/4 inch Bore Insert
- Regular price
- €14,71 ex VAT
- Sale price
- €14,71
- Regular price
-
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 3/4 inch |
| h | = | 2-33/64 inch |
| w | = | 3-25/32 inch |
| b | = | 2-33/64 inch |
| c | = | 0 inch |
| a | = | 1-37/64 inch |
| s | = | G-3/4 |
| l | = | 3/4 inch |
| B | = | 1.2205 inch |
| n | = | 0.5 inch |
| Bearing no | = | UC204-12 |
| Housing no | = | HA204 |
| Weight | = | 0.596 kg |
