SKU: UCFL.215-48

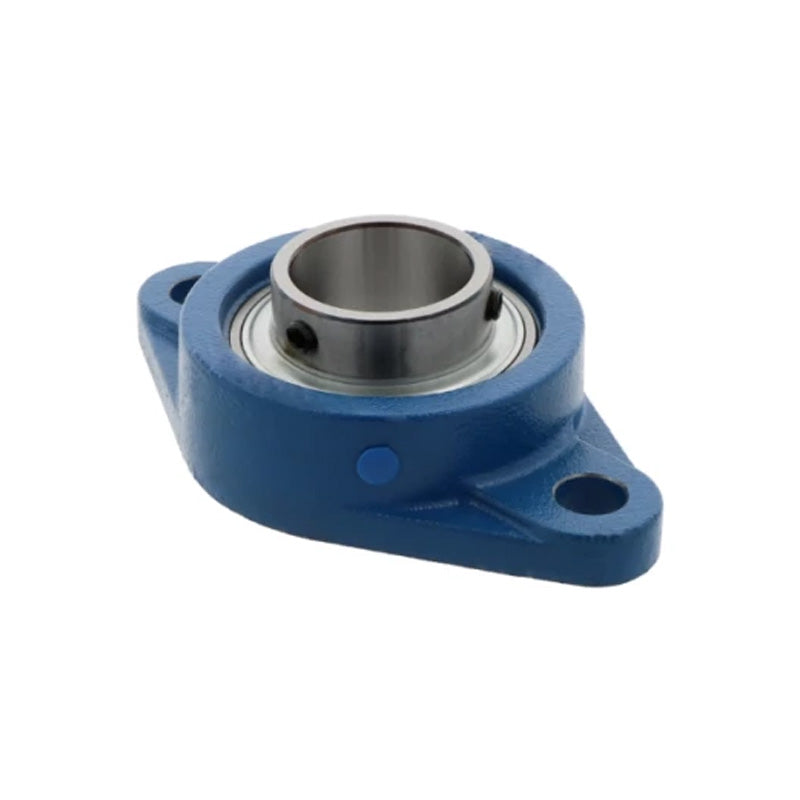

UCFL215-48 Imperial Two Bolt Oval Cast Iron Flange Housing with 3 inch Bore Insert
- Regular price
- €148,36 ex VAT
- Sale price
- €148,36
- Regular price
-
Not in stock
Quantity Price Breaks
3
€132,04
4
€124,62
9
€123,14
19
€121,66
49
€120,17
99
€118,69
499
€111,27
999
€109,79
1999
€108,30
2999
€106,82
4999
€103,85
SKU:
UCFL.215-48
UCFL215-48 Imperial Two Bolt Oval Cast Iron Flange Housing with 3 inch Bore Insert
- Regular price
- €148,36 ex VAT
- Sale price
- €148,36
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 3 inch |
| a | = | 275mm |
| e | = | 225mm |
| i | = | 35mm |
| g | = | 20mm |
| L | = | 57mm |
| S | = | 23mm |
| b | = | 165mm |
| z | = | 79.5mm |
| B1 | = | 77.8mm |
| n | = | 33.3mm |
| Bolt Size | = | M20 |
| Weight | = | 6.4 kg |
| Dynamic load | = | 5190 kgf |
| Static load | = | 4190 kgf |
