SKU: UCFC.210

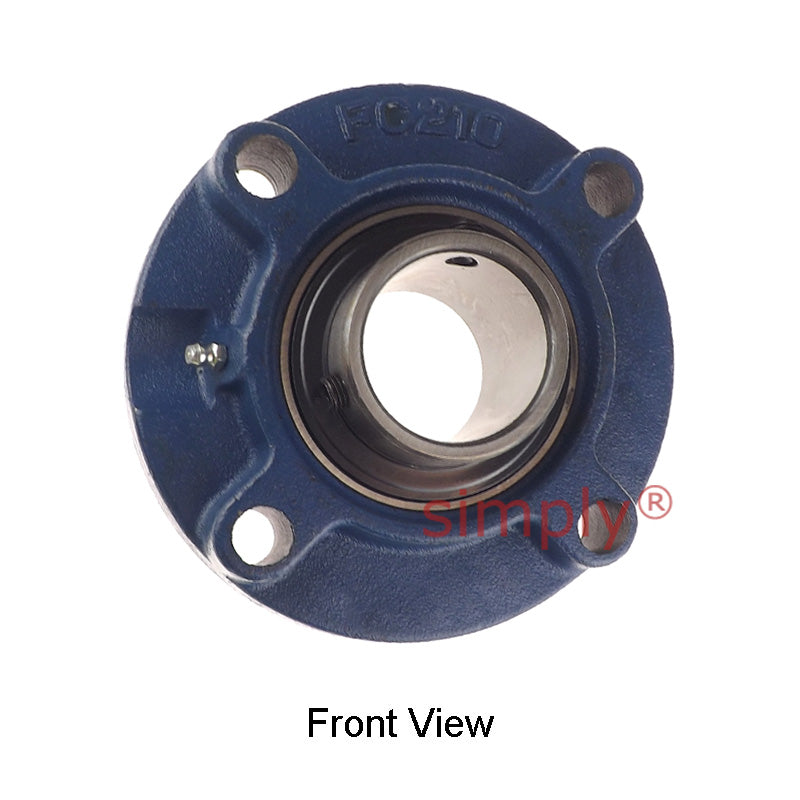

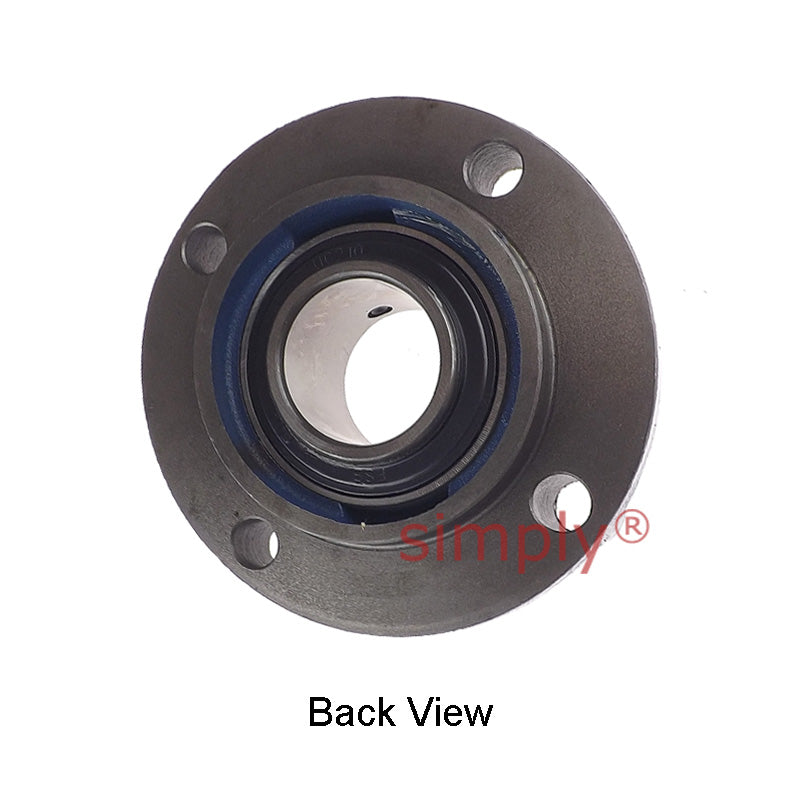

UCFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert
- Regular price
- €40,77 ex VAT
- Sale price
- €40,77
- Regular price
-
In stock
Quantity Price Breaks
3
€36,29
4
€34,25
9
€33,84
19
€33,43
49
€33,02
99
€32,62
499
€30,58
999
€30,17
1999
€29,76
2999
€29,35
4999
€28,54
SKU:
UCFC.210
UCFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert
- Regular price
- €40,77 ex VAT
- Sale price
- €40,77
- Regular price
-
Description
|

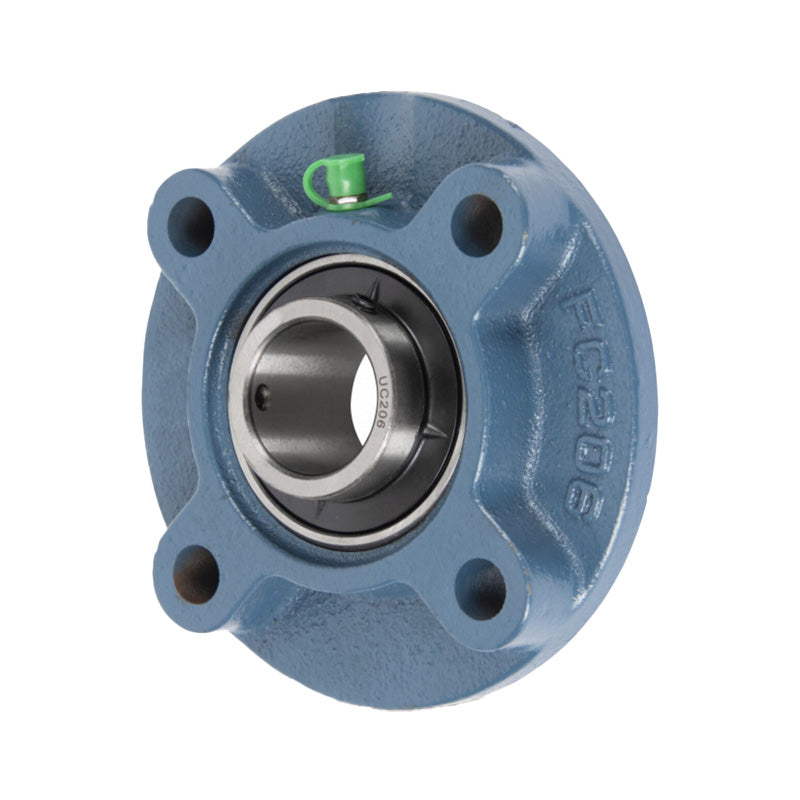

UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 50mm |
| a | = | 165mm |
| P | = | 138mm |
| e | = | 97.6mm |
| i | = | 10mm |
| L | = | 40mm |
| s | = | 16mm |
| j | = | 12mm |
| k | = | 14mm |
| g | = | 28mm |
| f | = | 110mm |
| z | = | 42.6mm |
| Bi | = | 51.6mm |
| n | = | 19mm |
| Bolt Size | = | M14 |
| Weight | = | 3 kg |
| Dynamic load | = | 2750 kgf |
| Static load | = | 2020 kgf |
