SKU: UCFC.209

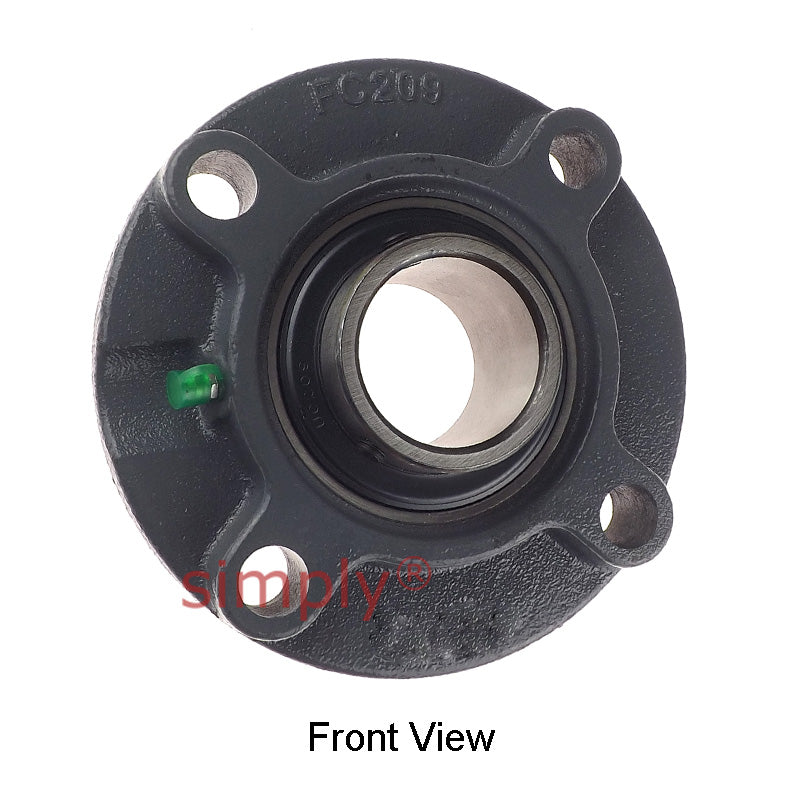

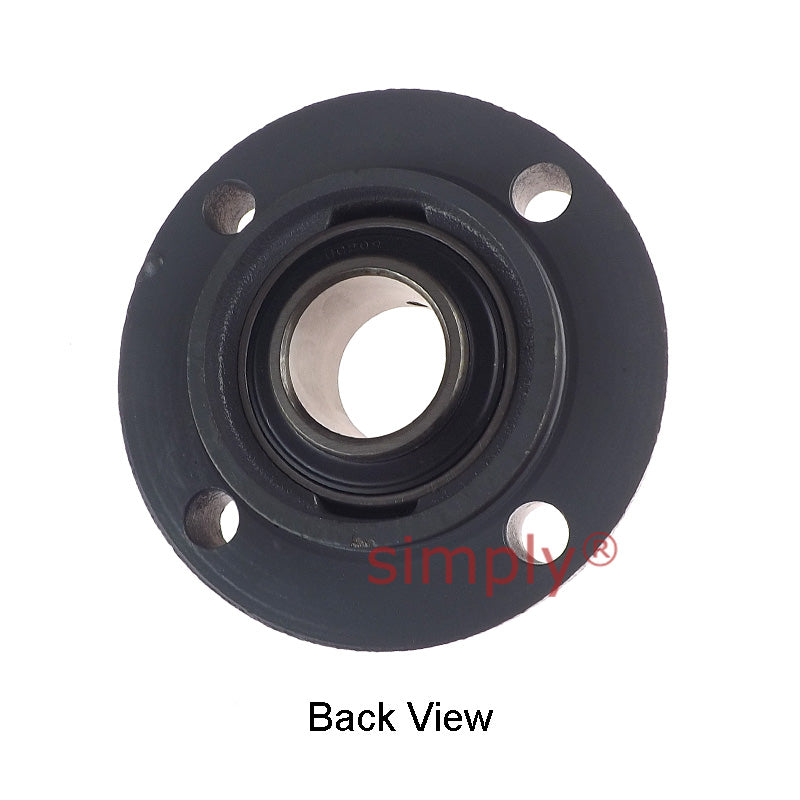

UCFC209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert
- Regular price
- €34,88 ex VAT
- Sale price
- €34,88
- Regular price
-
In stock
Quantity Price Breaks
3
€31,04
4
€29,30
9
€28,95
19
€28,60
49
€28,25
99
€27,90
499
€26,16
999
€25,81
1999
€25,46
2999
€25,11
4999
€24,42
SKU:
UCFC.209
UCFC209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert
- Regular price
- €34,88 ex VAT
- Sale price
- €34,88
- Regular price
-
Description
|

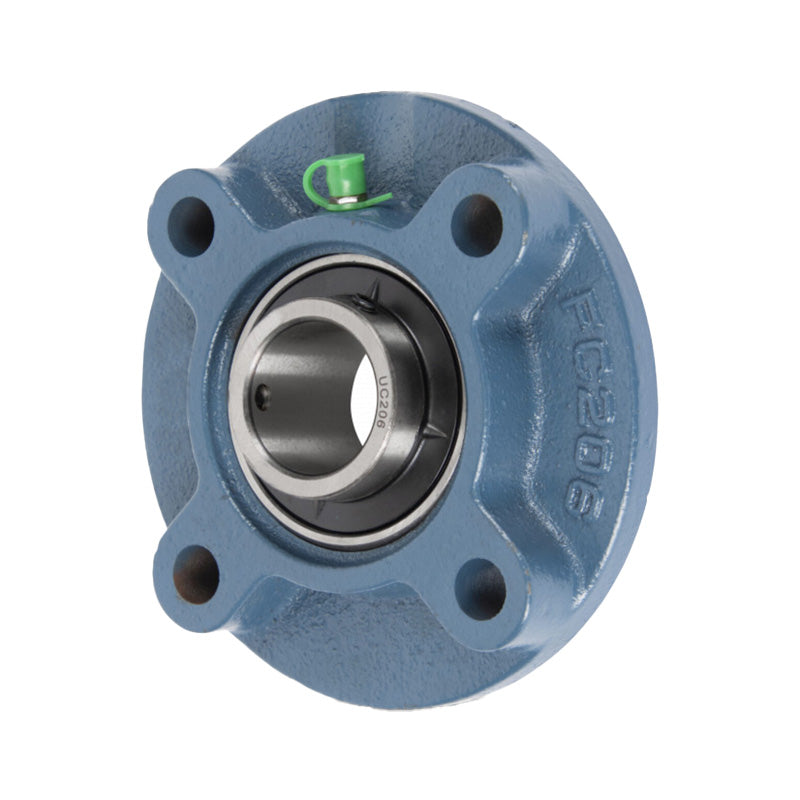

UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 45mm |
| a | = | 160mm |
| P | = | 132mm |
| e | = | 93.3mm |
| i | = | 10mm |
| L | = | 38mm |
| s | = | 16mm |
| j | = | 12mm |
| k | = | 10mm |
| g | = | 26mm |
| f | = | 105mm |
| z | = | 40.2mm |
| Bi | = | 49.2mm |
| n | = | 19mm |
| Bolt Size | = | M14 |
| Weight | = | 2.8 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
