SKU: UC309AGR-SNR

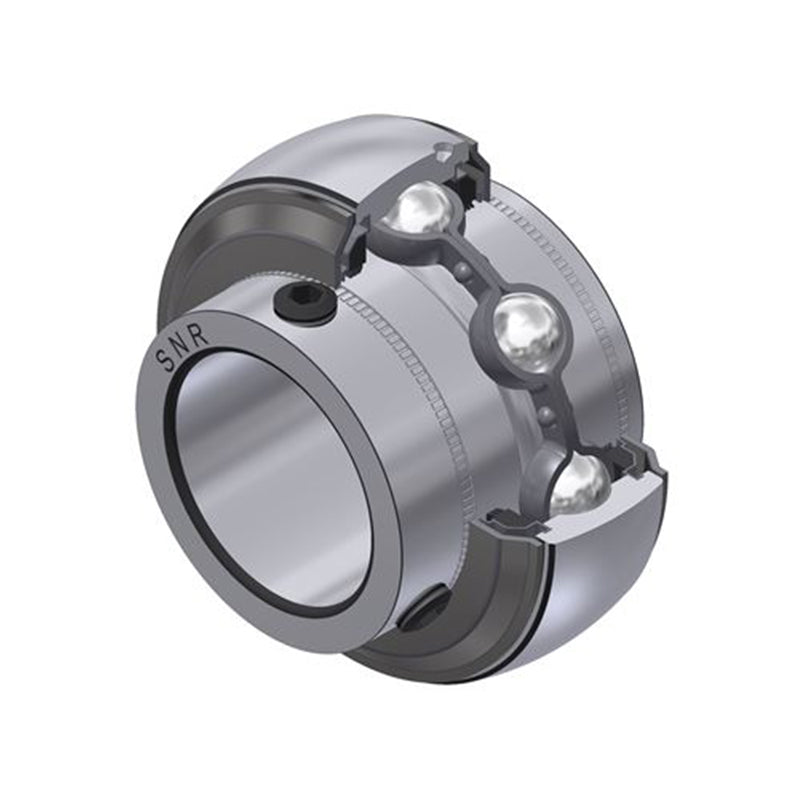

SNR UC309AGR Metric Full Width Spherical Outer Agricultural Bearing Insert 45mm Bore 100mm Outside Diameter with Grub Screws - Allow 2-3 Days
- Regular price
- €115,68 ex VAT
- Sale price
- €115,68
- Regular price
-
Quantity Price Breaks
SNR UC309AGR Metric Full Width Spherical Outer Agricultural Bearing Insert 45mm Bore 100mm Outside Diameter with Grub Screws - Allow 2-3 Days
- Regular price
- €115,68 ex VAT
- Sale price
- €115,68
- Regular price
-
Description

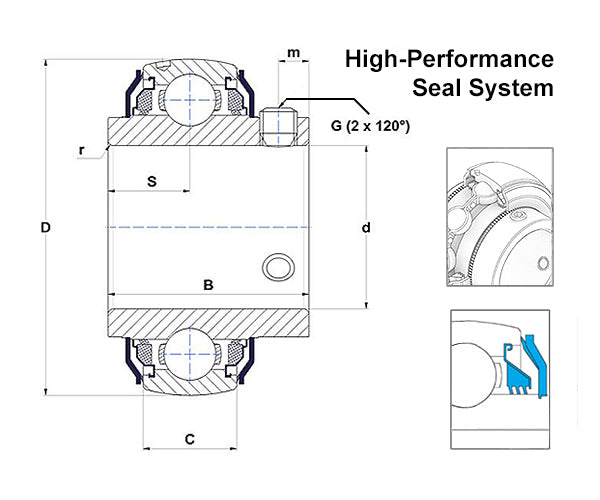

SNR UC-AGR Full Width Spherical Outer Bearing Insert with Grub Screws and Triple Lip Seals: This bearing insert is engineered for demanding environments, featuring a high-performance AGR seal system on each side of the insert to combat heavily dirt-contaminated conditions. Each insert boasts a wide inner ring design and a service-free design with 90% grease filling, ensuring maintenance-free operation. It includes a zinc-coated steel sheet retainer with a vulcanized triple lip seal, where the lips from NBR are axially preloaded and angled outwards. The triple lip seal is fully covered by a robust steel protector, with the zinc-coated impact shield additionally equipped with a lip seal and strongly secured on a knurled seat. This insert is designed for extremely polluted environments, offering shock resistance, suitability for low rotation speeds, and resistance to high-pressure washing. However, it incurs higher friction and is not suitable for use in all standard housings.
Benefits: High-quality brand, high-performance, triple lip sealed
