SKU: UC.217.TS.CHAL

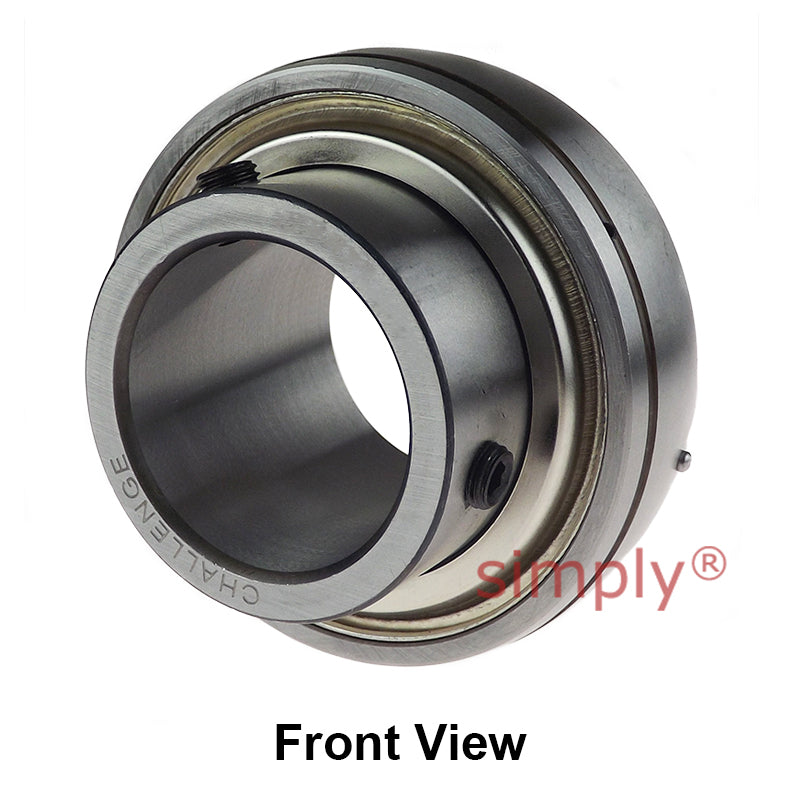

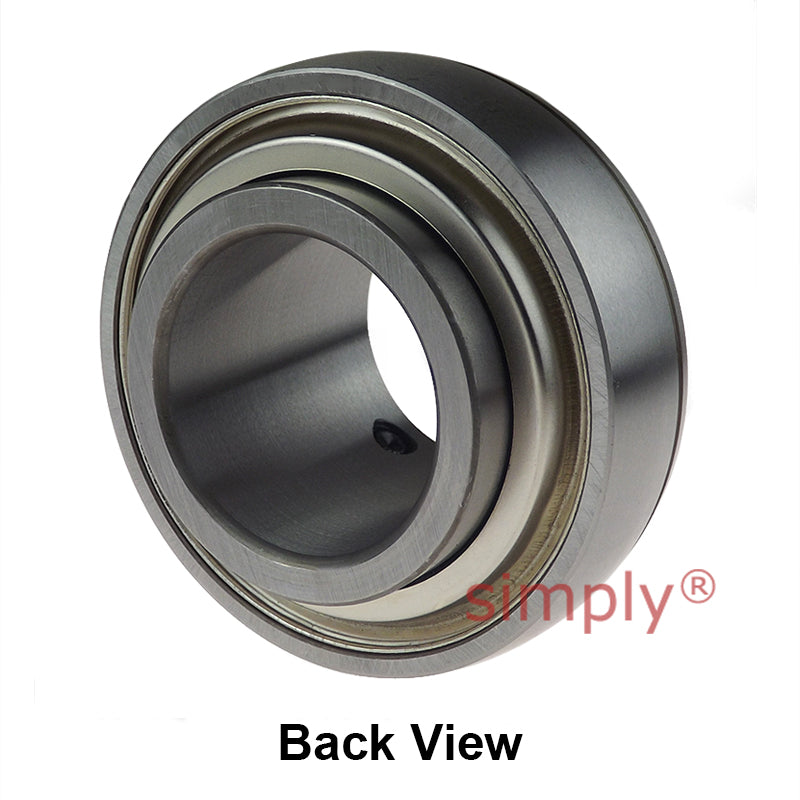

Challenge UC217 Metric Insert with Grub Screws with 85mm Bore 150mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €297,12 ex VAT
- Sale price
- €297,12
- Regular price
-
In stock
Quantity Price Breaks
3
€264,44
5
€249,58
9
€246,61
19
€243,64
49
€240,67
74
€237,70
99
€222,84
199
€219,87
249
€216,90
499
€213,93
999
€207,98
SKU:
UC.217.TS.CHAL
Challenge UC217 Metric Insert with Grub Screws with 85mm Bore 150mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €297,12 ex VAT
- Sale price
- €297,12
- Regular price
-
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 85mm |
| Outside Diameter D | = | 150mm |
| Overall Width Bi | = | 85.7mm |
| Inner Race Width Be | = | 35mm |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
