UC202-9 Metric Bearing Insert with 14.29mm Bore 47mm Outside Dia

SKU: UC.202-9

UC202-9 Metric Bearing Insert with 14.29mm Bore 47mm Outside Dia

€13,52 ex VAT
€13,52
ex VAT
In stock

Quantity Price Breaks

10+ €12,03
19+ €11,36
29+ €11,22
39+ €11,09
49+ €10,95
74+ €10,82
99+ €10,14
199+ €10,00
249+ €9,87
499+ €9,73
999+ €9,46
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UC202-9 Metric Bearing Insert with 14.29mm Bore 47mm Outside Dia
SKU: UC.202-9

UC202-9 Metric Bearing Insert with 14.29mm Bore 47mm Outside Dia

€13,52 ex VAT
€13,52
ex VAT

Description

UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

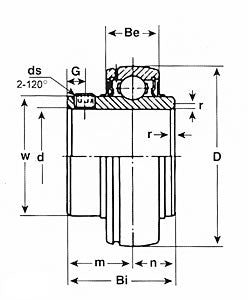

Technical

d = 14.29mm
D = 47mm
Bi = 31mm
Be = 17mm
n = 12.7mm
m = 18.3mm
G = 4.8mm
Grub screw = -
Weight = 0.21 kg
Dynamic load = 1000 kgf
Static load = 630 kgf
